Description

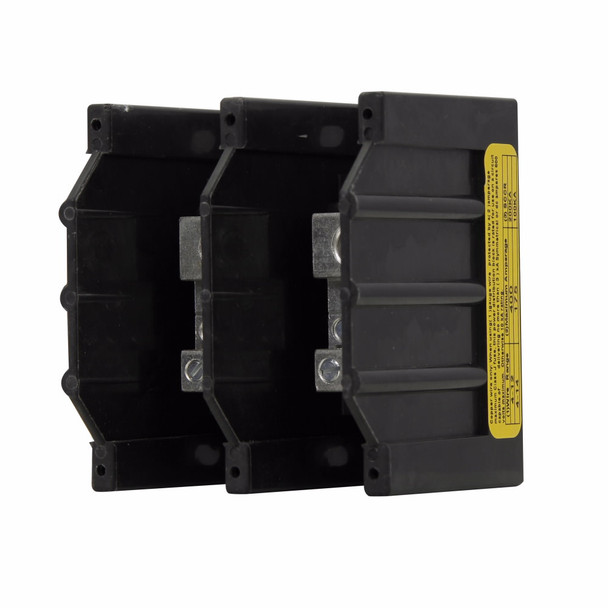

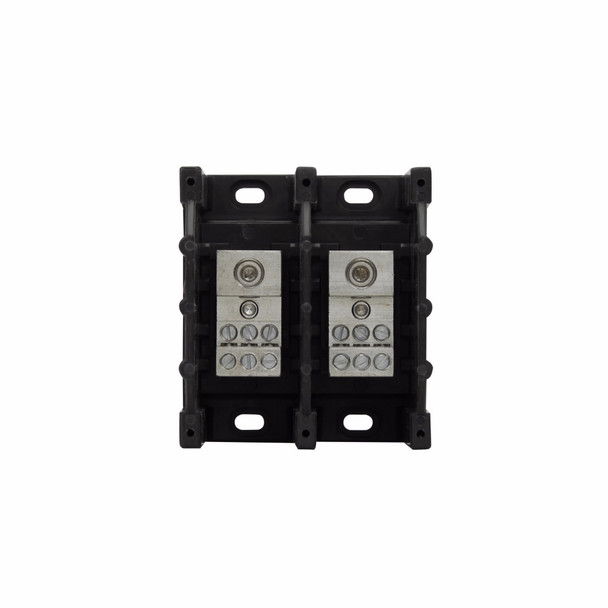

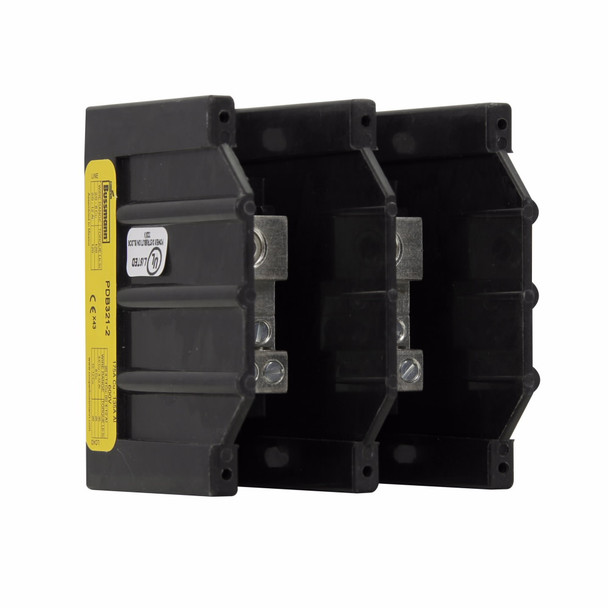

Bussmann PDB321-2 Power Terminal Block
Bussmann Power Distribution Block, Barrier, Series: PDB, 600 VAC/VDC, 175 A, 2 Pole, (1) Box Lug Primary Connections/Pole, (6) Box Lug Secondary Connection/Pole, 8 to 2/0 AWG Cu Line, (6) 14 to 4 AWG Cu Load Wire, Class CC Fuse, 200 kA Short Circuit Current, Aluminum, Tin Plated, Black, 4 in L x 3.58 in W x 3.32 in H
Additional Description: BUSS-PDB321-2 POWER DISTRIBUTION BLOCK
Catalog Description: Eaton Bussmann series PDB power distribution block, IP-20 Finger-safe, 600 Vac, 600 Vdc, 175A, Power distribution block, Two-pole, SCCR: 200 kA, Panel, Tin-plated aluminum connectors
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 175 |
| Amperage Rating | 175 A |
| Color | Black |
| Dimensions | 4 in L x 3.58 in W x 3.32 in H |
| Finish | Tin Plated |
| Fuse Type | Class CC |
| Material | Aluminum |
| Number of Poles | 2 |
| Series | PDB |
| Short Circuit Current Rating (kA) | 200 |
| Short Circuit Current Rating (kA) | 200 kA |
| Type | Barrier |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 8 to 2/0 |
| Wire Size | 8 to 2/0 AWG Cu Line, (6) 14 to 4 AWG Cu Load |
