Description

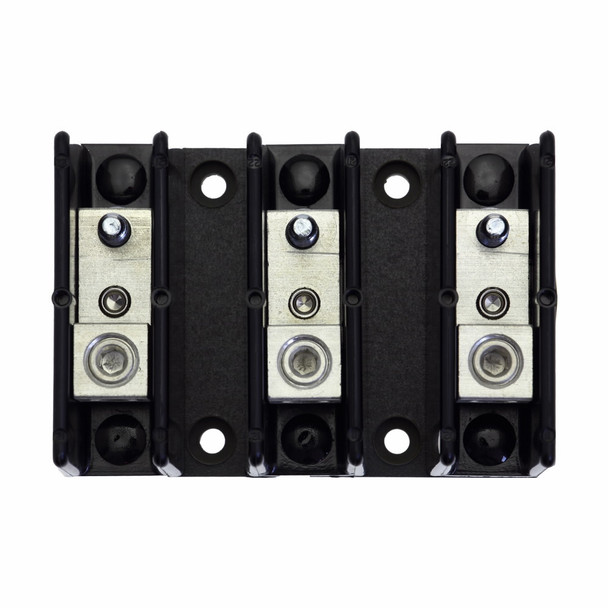

Bussmann PDB280-3 Power Terminal Block
Bussmann Power Distribution Block, Barrier, Series: PDB, 600 VAC/VDC, 175 A, 3 Pole, (1) Box Lug Primary Connections/Pole, (1) 1/4-20 x 3/4 in Stud Secondary Connection/Pole, 8 to 2/0 AWG Line Copper Wire, Class CC Fuse, 200 kA Short Circuit Current Rating, Aluminum, Tin Plated, Black, 2.88 in L x 4.27 in W x 2.13 in H
Additional Description: BUSS-PDB280-3 POWER DISTRIBUTION BLOCK
Catalog Description: Eaton Bussmann series PDB power distribution block, Power distribution block, Three-pole
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 175 |
| Amperage Rating | 175 A |
| Color | Black |
| Dimensions | 2.88 in L x 4.27 in W x 2.13 in H |
| Finish | Tin Plated |
| Fuse Type | Class CC |
| Material | Aluminum |
| Number of Poles | 3 |
| Series | PDB |
| Short Circuit Current Rating (kA) | 200 |
| Short Circuit Current Rating (kA) | 200 kA |
| Type | Barrier |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 8 to 2/0 |
| Wire Size | 8 to 2/0 AWG Line Copper |
