Description

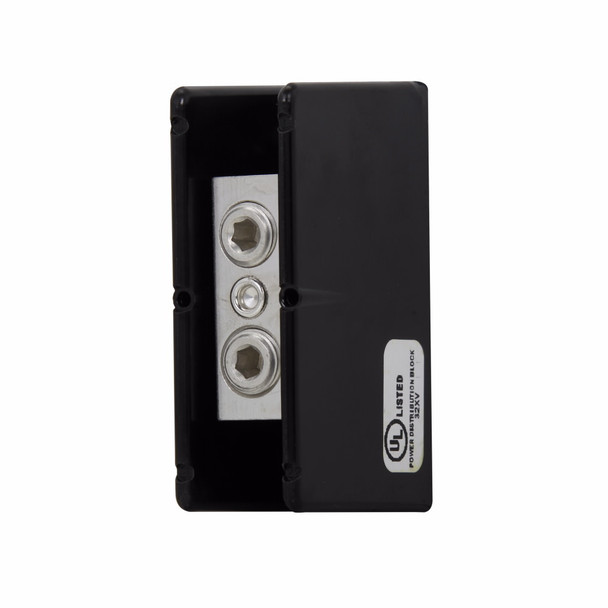

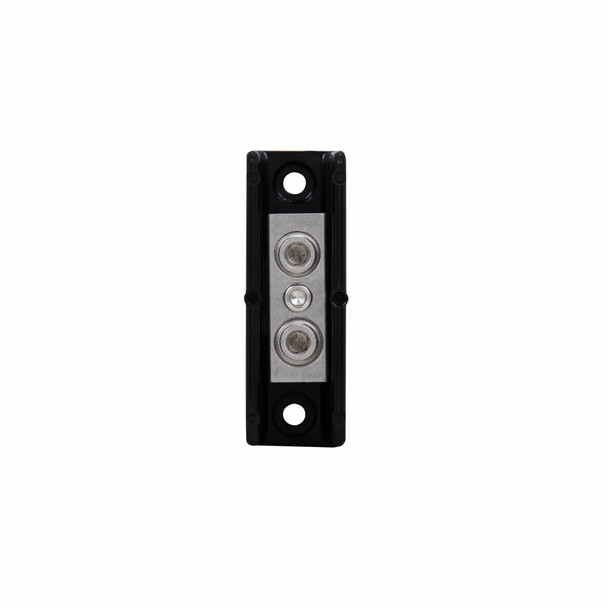

Bussmann PDB204-1 Power Distribution Block
Bussmann Power Distribution Block, Barrier High SCCR, 600 VAC/VDC, 175 A, 1 Pole, 1 Primary Connections/Pole, 1 Secondary Connection/Pole, 8 to 2/0 AWG Wire, Class CC Fuse, 200 kA Short Circuit Current, Aluminum, Tin Plated, 2.88 in L x 1.07 in W x 1.75 in H
Additional Description: BUSS-PDB204-1 POWER DISTRIBUTION BLOCK
Catalog Description: Eaton Bussmann series PDB power distribution block, IP-20 Finger-safe, 600 Vac, 600 Vdc, 175 A, Single-pole, SCCR: 200 kAIC, Panel, Tin-plated aluminum connectors
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 175 |
| Amperage Rating | 175 A |
| Dimensions | 2.88 in L x 1.07 in W x 1.75 in H |
| Finish | Tin Plated |
| Fuse Type | Class CC |
| Material | Aluminum |
| Material | Phenolic |
| Number of Poles | 1 |
| Short Circuit Current Rating (kA) | 200 |
| Short Circuit Current Rating (kA) | 200 kA |
| Type | Barrier High SCCR |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 8 to 2/0 |
| Wire Size | 8 to 2/0 AWG |
