Description

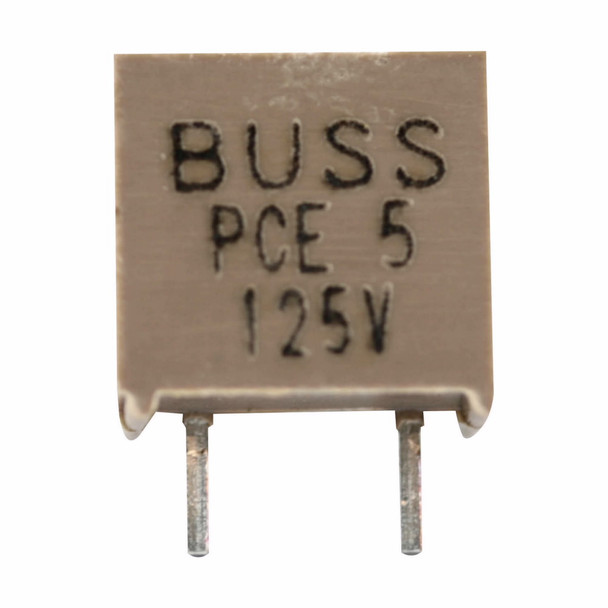

Bussmann PCE-5-R PC-Tron Fast Acting Fuse
Bussmann PC-Tron Fast Acting Fuse, Subminiature, Series: PCE, Non-Indicating, 5 A, 125 VAC, 400 VDC, 10/300 to 1 kA Interrupt, 4 hr, 10 s Response, Radial Lead Terminal, Through Hole Mounting, 0.29 in H x 0.3 in W x 0.095 in D Body
Additional Description: BUSS-PCE-5-R (N) PC TRON - ROHS NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series fast-acting fuse, 125 Vac, 400 Vdc
Specifications
| UNSPSC | 39121609 |
|---|---|
| Amperage Rating | 5 |
| Amperage Rating | 5 A |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 10/300 to 1 |
| Interrupt Rating | 10/300 to 1 kA |
| Mounting type | Through Hole |
| Response Time | 4 hr, 10 s |
| Series | PCE |
| Terminal Type | Radial Lead |
| Type | Subminiature |
| Voltage Rating | 125 VAC, 400 VDC |
