Description

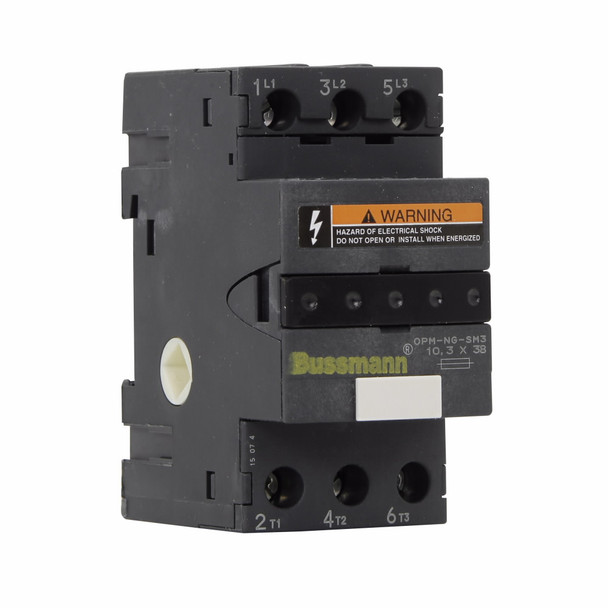

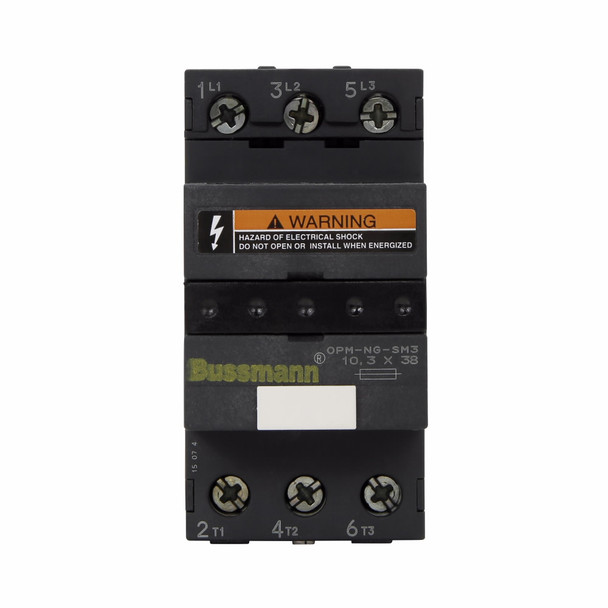

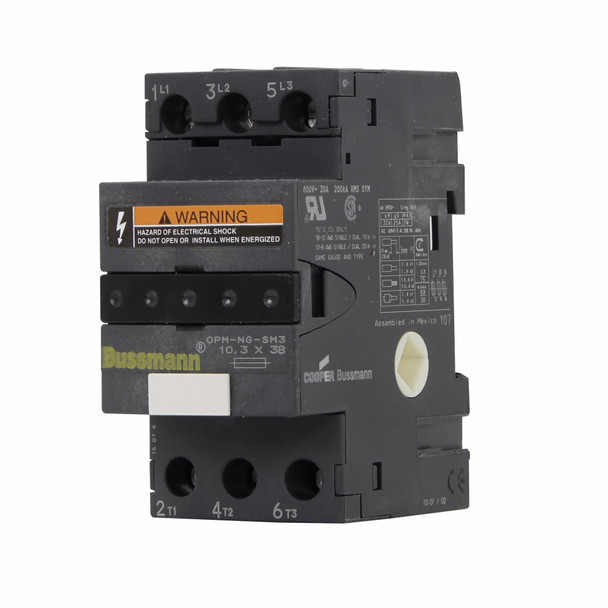

Bussmann OPM-NG-SM3 Fuse Holder Module
Bussmann OPTIMA Fuse Holder Module, Overcurrent Protection, Series: OPM, 600/690 VAC, 30/32 A, 3 Pole, Class CC Fuse, 14 to 6 AWG Wire, 13/32 x 1-1/2 in Fuse, DIN Rail/Threaded/Screw Mount, -10 to 65 deg C Operating, 1.8 in Width, 3-1/2 in Height, Thermoplastic
Additional Description: BUSS-OPM-NG-SM3 45MM 3 PHASE FUSE HOLDER
Catalog Description: Eaton Bussmann series Optima fuse holders, 0-30 A, Three-pole, Philslot screws/pressure plate, 200 kAIC, Thermoplastic, 600 V or less (UL/CSA 30 A), 690 V or less (IEC 32 A)
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 30/32 |
| Amperage Rating | 30/32 A |
| Color | Black |
| Connection type | Philips Slot Screw/Pressure Plate |
| Dimensions | 2.7 in L x 1.8 in W x 3.5 in H |
| Fuse Diameter | 13/32 |
| Fuse Length | 1-1/2 |
| Fuse Size | 13/32 x 1-1/2 in |
| Fuse Type | Class CC |
| Height | 3-1/2 in |
| Material | Thermoplastic |
| Mounting type | DIN Rail/Threaded |
| Mounting type | DIN Rail/Threaded/Screw |
| Number of Poles | 3 |
| Operating Temperature | -10 to 65 deg C |
| Series | OPM |
| Suitable For Use With | KLM/KTK/FNQ Series 13/32 x 1-1/2 in Fuse, FWA/FWC/C10G/C10M Series 10 x 38 mm Fuse |
| Temperature Rating (Degrees F) | -10 to 65 |
| Type | Overcurrent Protection |
| Voltage Rating | 600/690 |
| Voltage Rating | 600/690 VAC |
| Width | 1.8 in |
| Wire Size | 14 to 6 |
| Wire Size | 14 to 6 AWG |
