Description

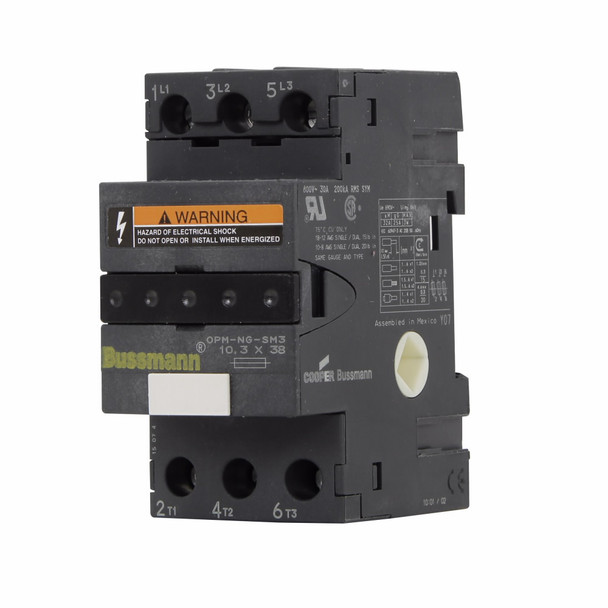

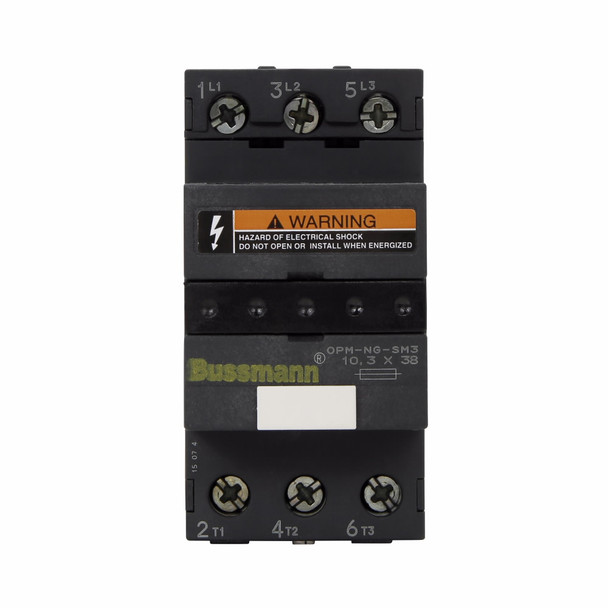

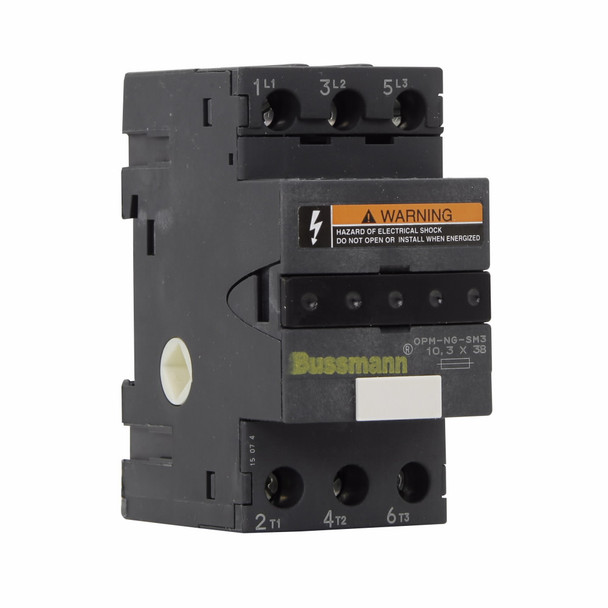

Bussmann OPM-NG-SC3 Fuse Holder Module
Bussmann OPTIMA Fuse Holder Module, Overcurrent Protection, Series: OPM, 600 VAC, 30 A, 3 Pole, Class CC Fuse, 14 to 6 AWG Wire, DIN Rail/Threaded/Screw Mount, -10 to 65 deg C Operating, 3-1/2 in Height, Thermoplastic
Additional Description: BUSS-OPM-NG-SC3 45MM 3 PHASE FUSE HOLDER CC FUSES
Catalog Description: Eaton Bussmann series Optima fuse holders, 600V or less, 0-30A, Philslot Screws/Pressure Plate, Three-pole
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 30 |
| Amperage Rating | 30 A |
| Color | Black |
| Connection type | Philips Slot Screw/Pressure Plate |
| Dimensions | 1.8 in L x 3.5 in H |
| Fuse Type | Class CC |
| Height | 3-1/2 |
| Height | 3-1/2 in |
| Material | Thermoplastic |
| Mounting type | DIN Rail/Threaded |
| Mounting type | DIN Rail/Threaded/Screw |
| Number of Poles | 3 |
| Operating Temperature | -10 to 65 |
| Operating Temperature | -10 to 65 deg C |
| Series | OPM |
| Suitable For Use With | LP-CC/KTK-R/FNQ-R Series Rejection Class CC Fuse |
| Temperature Rating (Degrees F) | -10 to 65 |
| Type | Overcurrent Protection |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC |
| Wire Size | 14 to 6 |
| Wire Size | 14 to 6 AWG |
