Description

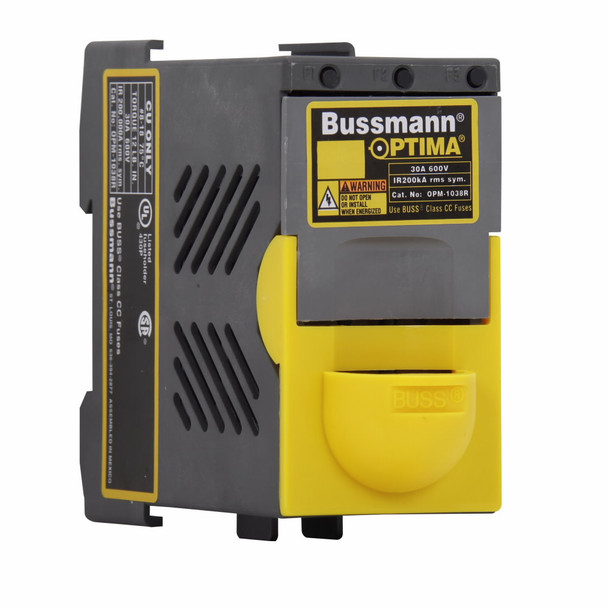

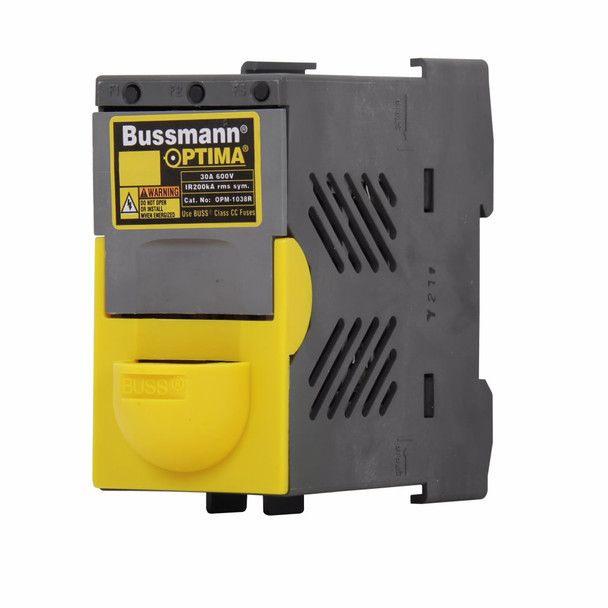

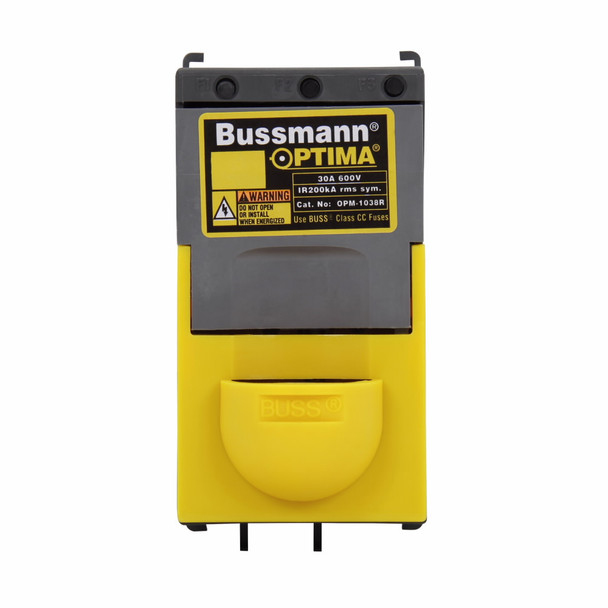

Bussmann OPM-1038RC Fuse Holder Module
Bussmann OPTIMA Fuse Holder Module, Dead Front Indicating Overcurrent Protection, Series: OPM, 600 VAC/VDC, 30 A, 3 Pole, Class CC Fuse, 18 to 8/18 to 10 AWG Wire, Stranded/Solid Wire, DIN Rail/Threaded/Screw Mount, 1.76 in Width, 3.6 in Height, 3.74 in D, Thermoplastic
Additional Description: BUSS-OPM-1038RC OPTIMA MODULE W/COMM.
Catalog Description: Eaton Bussmann series Optima fuse holders, 600V (UL/CSA), 30A (UL/CSA), #8-18 AWG stranded, #10-18 AWG solid, Three-pole, RC
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 30 |
| Amperage Rating | 30 A |
| Color | Gray |
| Connection type | Box Lug |
| Depth | 3.74 in |
| Dimensions | 3.6 in H x 1.76 in W x 3.74 in D |
| Fuse Diameter | 13/32 |
| Fuse Length | 1-1/2 |
| Fuse Type | Class CC |
| Height | 3.6 in |
| Material | Thermoplastic |
| Mounting type | DIN Rail/Threaded |
| Mounting type | DIN Rail/Threaded/Screw |
| Number of Poles | 3 |
| Series | OPM |
| Series | OPM-1038 |
| Suitable For Use With | KTK/FNM/FNQ Series Class CC Non-Rejection Fuse |
| Type | Dead Front Indicating Overcurrent Protection |
| Type | Indicating Overcurrent Protection |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Width | 1.76 in |
| Wire Size | 18 to 8 AWG Stranded, 18 to 10 AWG Solid |
| Wire Size | 18 to 8/18 to 10 AWG |
| Wire Type | Stranded/Solid |
