Description

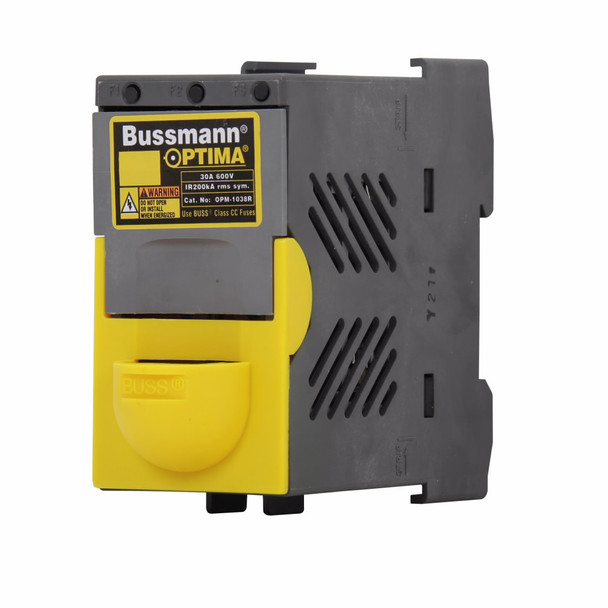

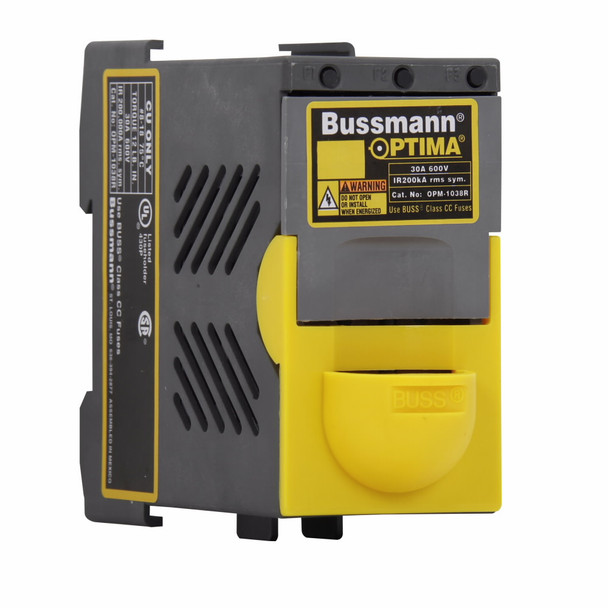

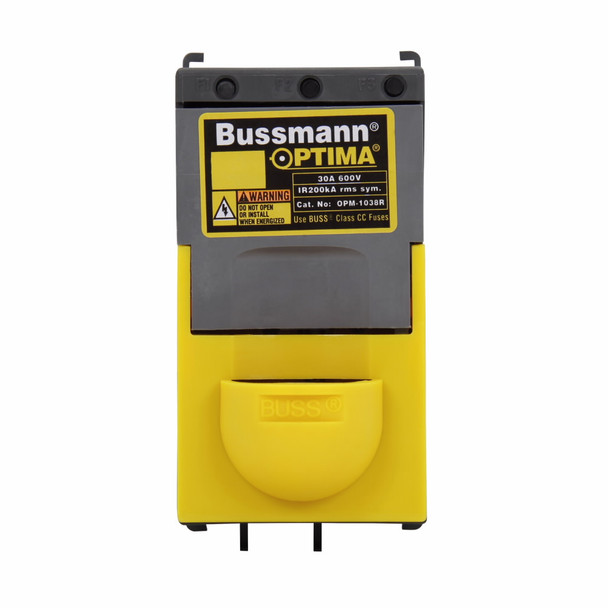

Bussmann OPM-1038C Overcurrent Protection Module
Bussmann OPTIMA Fuse Holder Module, Overcurrent Protection, Series: OPM-1038, 600/660 V, 30/32 A, 3 Pole, Midget Fuse, 18 to 8 AWG, 18 to 10 AWG Wire, Solid/Stranded Wire, DIN Rail/Screw Mount, 1.76 in Width, 3.6 in Height, 3.74 in D, Thermoplastic
Additional Description: BUSS-OPM-1038C OPTIMA MODULE W/COMM.
Catalog Description: Eaton Bussmann series Optima fuse holders, 600V (UL/CSA), 660V (IEC), 30A (UL/CSA), 32A (IEC), #8-18 AWG stranded, #10-18 AWG solid, Three-pole, C
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 30/32 |
| Amperage Rating | 30/32 A |
| Depth | 3.74 |
| Depth | 3.74 in |
| Fuse Type | Midget |
| Height | 3.6 |
| Height | 3.6 in |
| Material | Thermoplastic |
| Mounting type | DIN Rail/Screw |
| Number of Poles | 3 |
| Series | OPM-1038 |
| Type | Overcurrent Protection |
| Voltage Rating | 600/660 V |
| Voltage Rating | 600/660 VAC/600 VDC |
| Width | 1.76 |
| Width | 1.76 in |
| Wire Size | 18 to 8 |
| Wire Size | 18 to 8 AWG, 18 to 10 AWG |
| Wire Type | Solid/Stranded |
