Description

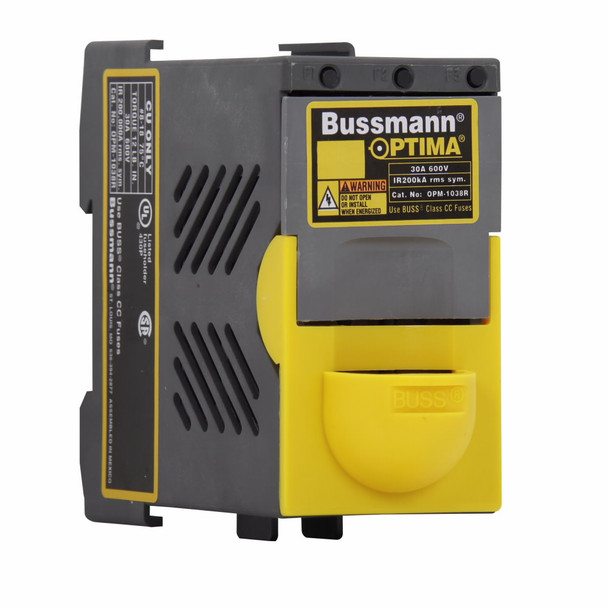

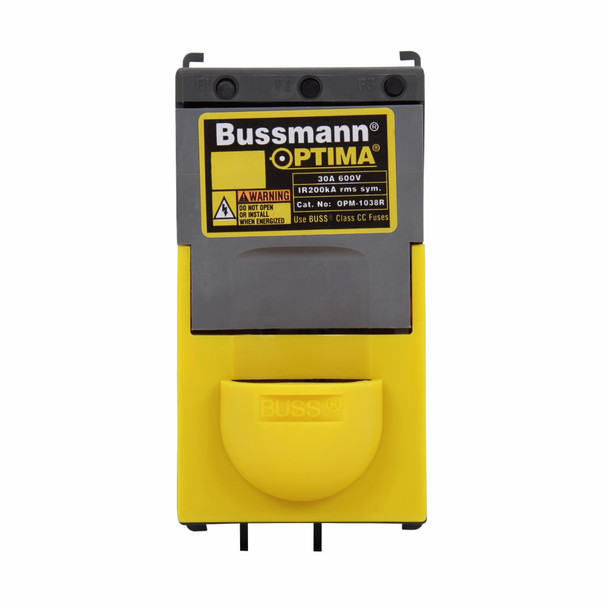

Bussmann OPM-1038 Fuse Holder Module
Bussmann Optima Fuse Holder, Overcurrent Protection, Series: OPM, 600/660 VAC, 30/32 A, 3 Pole, Class CC Fuse, 18 to 8/18 to 10 AWG Wire, Stranded/Solid Wire, 13/32 x 1-1/2 in Fuse, DIN Rail/Screw Mount, 1.76 in Width, 3.6 in Height, 3.74 in D, Thermoplastic
Additional Description: BUSS-OPM-1038 OPTIMA MODULE/MIDGETSTYLE
Catalog Description: Eaton Bussmann series Optima fuse holders, 600V (UL/CSA), 660V (IEC), 30A (UL/CSA), 32A (IEC), #8-18 AWG stranded, #10-18 AWG solid, Three-pole
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 30 |
| Amperage Rating | 30/32 |
| Amperage Rating | 30/32 A |
| Class | CC/Midget |
| Color | Gray |
| Depth | 3.74 |
| Depth | 3.74 in |
| Dimensions | 3.6 in H x 1.76 in W x 3.74 in D |
| Fuse Diameter | 13/32 |
| Fuse Length | 1-1/2 |
| Fuse Size | 13/32 x 1-1/2 in |
| Fuse Type | Class CC |
| Fuse Type | Midget |
| Height | 3.6 |
| Height | 3.6 in |
| Material | Thermoplastic |
| Mounting type | DIN Rail |
| Mounting type | DIN Rail/Screw |
| Mounting type | DIN Rail/Threaded |
| Number of Phases | 3 |
| Number of Poles | 3 |
| Power Rating | 15 |
| Series | OPM |
| Suitable For Use With | 13/32 in Dia x 1-1/2 in L Fuse |
| Type | Overcurrent Protection |
| Type | Overcurrent Protection Fuse Holder Module |
| Voltage Rating | 600 |
| Voltage Rating | 600/660 VAC |
| Voltage Rating | 600/660 VAC, 600 VDC |
| Width | 1.76 |
| Width | 1.76 in |
| Wire Size | 18 to 8 AWG, 18 to 10 AWG |
| Wire Size | 18 to 8 AWG, 18 to 10 AWG Stranded/Solid |
| Wire Size | 18 to 8/18 to 10 AWG |
| Wire Type | Solid/Stranded |
| Wire Type | Stranded/Solid |
