Description

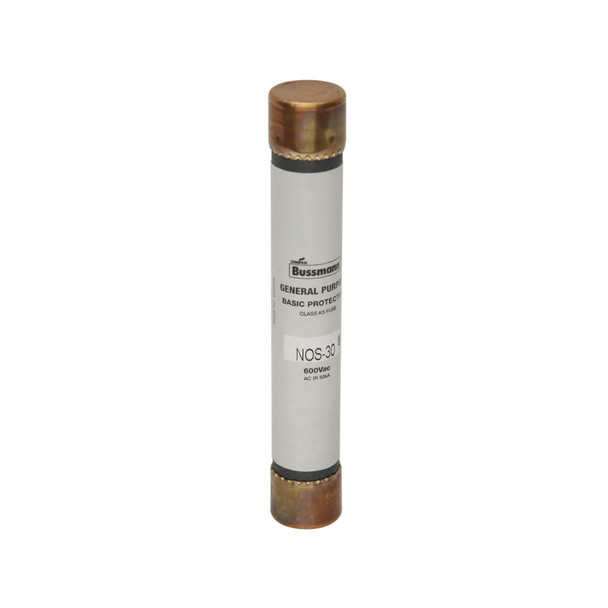

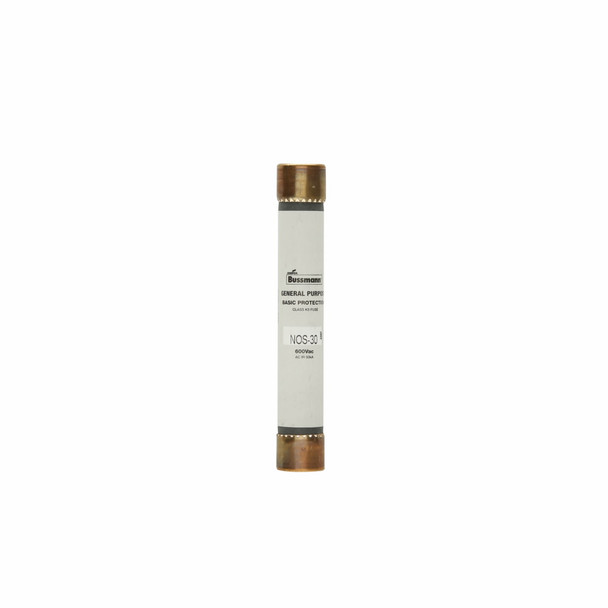

Bussmann NOS-30 One Time Fuse
Bussmann Fuse, One-Time Non-Current Limiting, Series: NOS, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 30 A, 600 VAC, 50 kAIC Interrupt, Class: H, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Single Element, Melamine, 0.81 in Dia x 5 in L Body Size
Additional Description: BUSS-NOS-30 BUSS ONE TIME FUSE
Catalog Description: Eaton Bussmann series NOS fuse, Non current limiting, Light duty circuit locations, 30 A, Class H, Non-indicating, Ferrule end x ferrule end, 50 kAIC at 600 Vac, Standard, 10, 600 V
Specifications
| UNSPSC | 39121605 |
|---|---|
| Amperage Rating | 30 |
| Amperage Rating | 30 A |
| Body Type | Cylindrical |
| Class | H |
| Class | H/K5 |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 50 |
| Interrupt Rating | 50 kAIC |
| Material | Melamine |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Rejection/Non-Rejection | Rejection |
| Series | NOS |
| Terminal Type | Ferrule |
| Terminal Type | Ferrule End |
| Type | Non-Current Limiting |
| Type | One-Time Non-Current Limiting |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC |
