Description

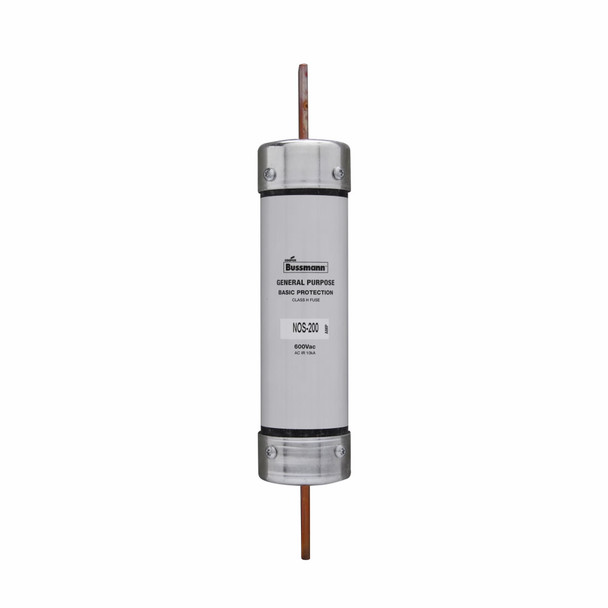

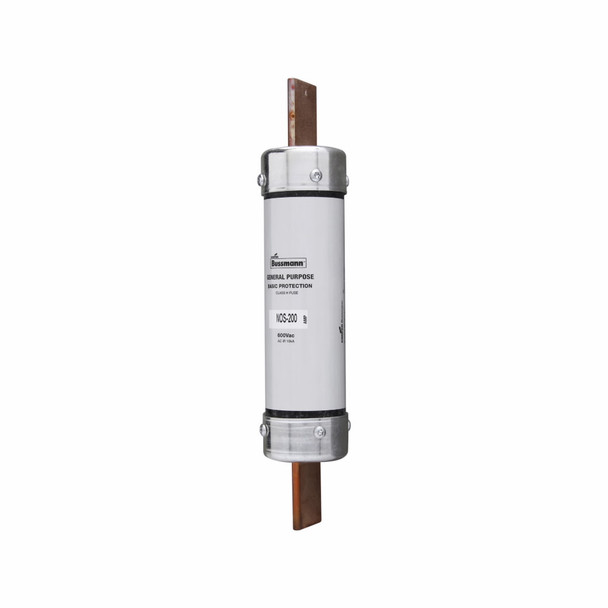

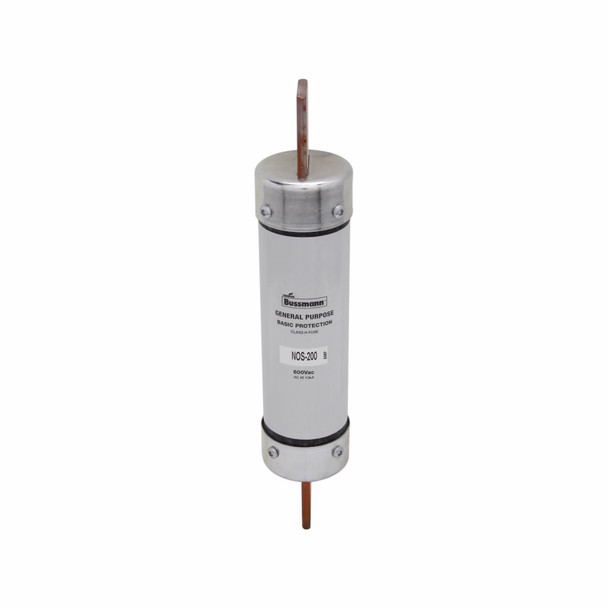

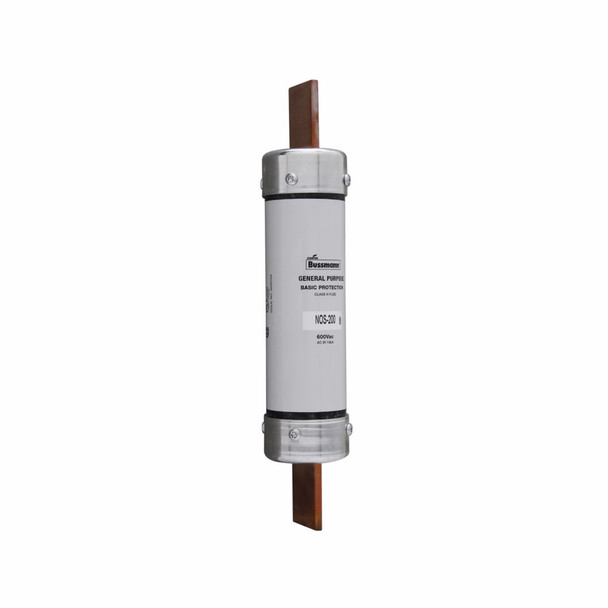

Bussmann NOS-200 General Purpose Fuse
Bussmann Fuse, One-Time Non-Current Limiting, Series: NOS, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 200 A, 600 VAC, 10 kAIC Interrupt, Class: H, Blade End Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine, 2.59 in Dia x 11.63 in L Body Size
Additional Description: BUSS-NOS-200 BUSS ONE TIME FUSE
Catalog Description: Eaton Bussmann series NOS fuse, Non current limiting, Light duty circuit locations, 200 A, Class H, Non-indicating, Blade end x blade end, 10 kAIC at 600 Vac, Standard, 1, 600 V
Specifications
| UNSPSC | 39121605 |
|---|---|
| Amperage Rating | 200 |
| Amperage Rating | 200 A |
| Body Type | Cartridge |
| Body Type | Cartridge Blade |
| Class | H |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 10 |
| Interrupt Rating | 10 kAIC |
| Material | Melamine |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Rejection/Non-Rejection | Rejection |
| Series | NOS |
| Terminal Type | Blade |
| Terminal Type | Blade End |
| Type | Non-Current Limiting One Time |
| Type | One-Time Non-Current Limiting |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC |
