Description

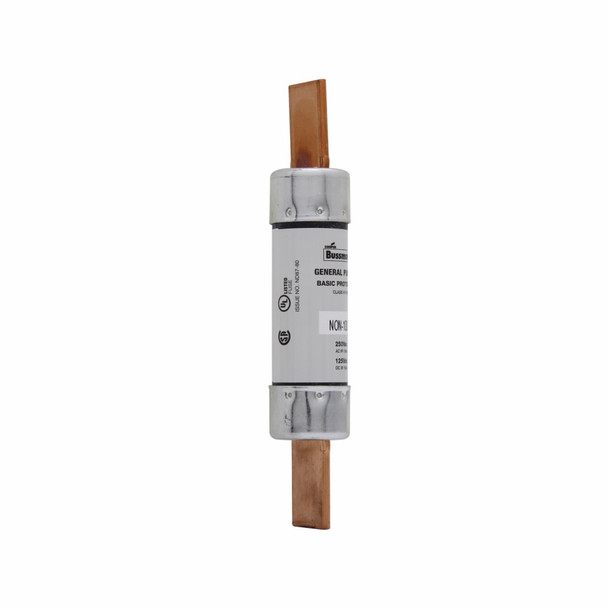

Bussmann NON-80 General Purpose Fuse
Bussmann One-Time Fuse, General Purpose Non-Current Limiting, Series: NON, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 80 A, 250 VAC/125 VDC, 10/50 kA Interrupt, Class: H, Blade Terminal, Holder Mount, Cartridge Blade Body Type, Single Element, Melamine, 1.06 in Dia x 5.88 in L Body Size
Additional Description: BUSS-NON-80 BUSS ONE TIME FUSE
Catalog Description: Eaton Bussmann series NON fuse, Supplemental one-time fuse, Non current limiting, Light duty circuit locations, 80 A, Class H, Non-indicating, Blade end x blade end, 10 kAIC at 250 Vac,50 kAIC at 125 Vdc, Standard, 5, 250 V, 125 Vdc
Specifications
| UNSPSC | 39121605 |
|---|---|
| Amperage Rating | 80 |
| Amperage Rating | 80 A |
| Body Type | Cartridge Blade |
| Class | H |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 10 |
| Interrupt Rating | 10/50 kA |
| Material | Melamine |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | NON |
| Terminal Type | Blade |
| Type | General Purpose Non-Current Limiting |
| Type | Non-Current Limiting One Time |
| Voltage Rating | 250 VAC/125 VDC |
