Description

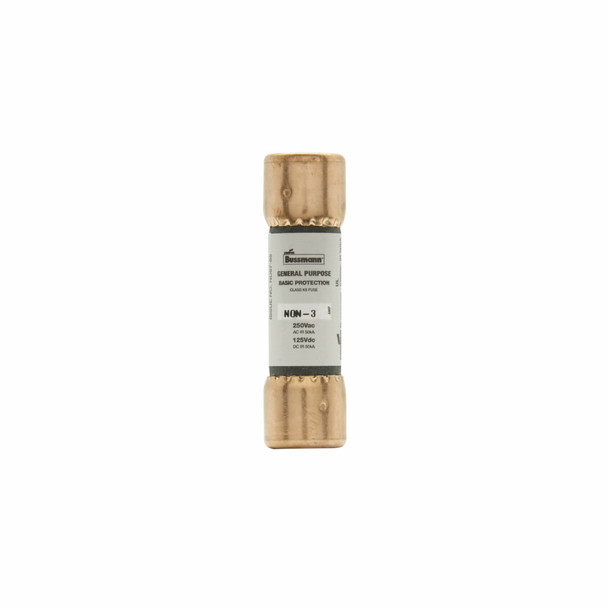

Bussmann NON-3 One-Time Fuse
Bussmann Fuse, One-Time General Purpose Fast Acting Non-Current Limiting, Series: NON, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 3 A, 250 VAC/125 VDC, 50 kAIC Interrupt, Class: H, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Single Element, Melamine, 0.56 in Dia x 2 in L Body Size
Additional Description: BUSS-NON-3 BUSS ONE TIME FUSE
Catalog Description: Eaton Bussmann series NON fuse, Supplemental one-time fuse, Non current limiting, Light duty circuit locations, 3 A, Class H, Non-indicating, Ferrule end x ferrule end, 50 kAIC at 250 Vac,50 kAIC at 125 Vdc, Standard, 10, 250 V, 125 Vdc
Specifications
| UNSPSC | 39121605 |
|---|---|
| Amperage Rating | 3 |
| Amperage Rating | 3 A |
| Body Type | Cylindrical |
| Class | H |
| Class | K5 |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 50 |
| Interrupt Rating | 50 kAIC |
| Material | Melamine |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Rejection/Non-Rejection | Rejection |
| Series | NON |
| Terminal Type | Ferrule |
| Terminal Type | Ferrule End |
| Type | General Purpose Fast Acting Non-Current Limiting |
| Type | One-Time General Purpose Fast Acting Non-Current Limiting |
| Voltage Rating | 250 VAC, 125 VDC |
| Voltage Rating | 250 VAC/125 VDC |
