Description

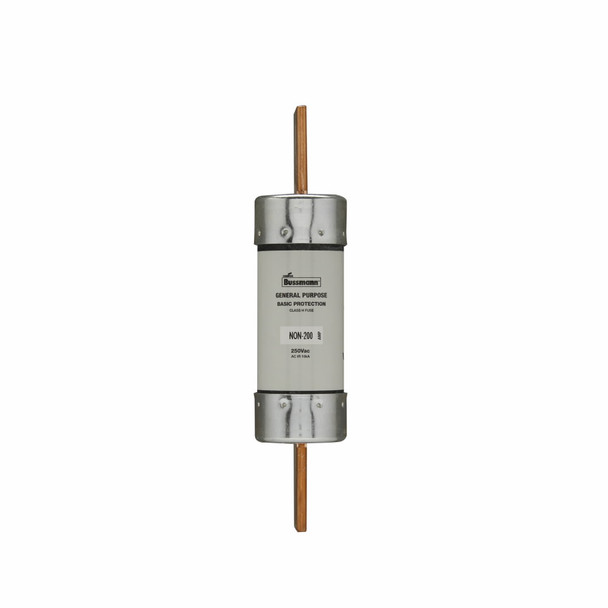

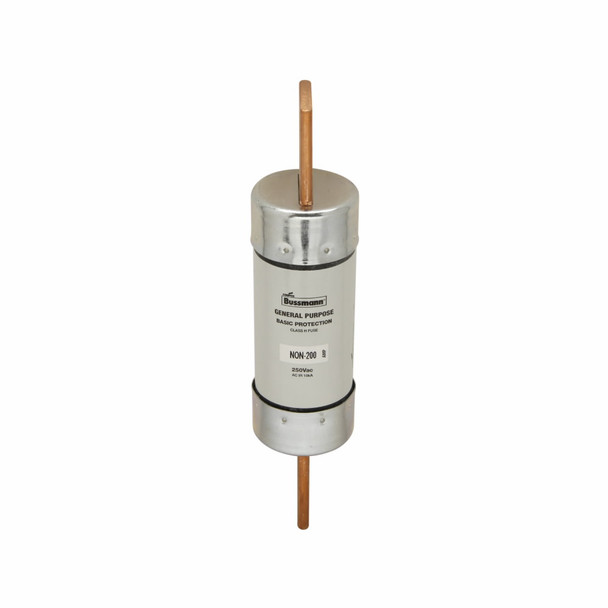

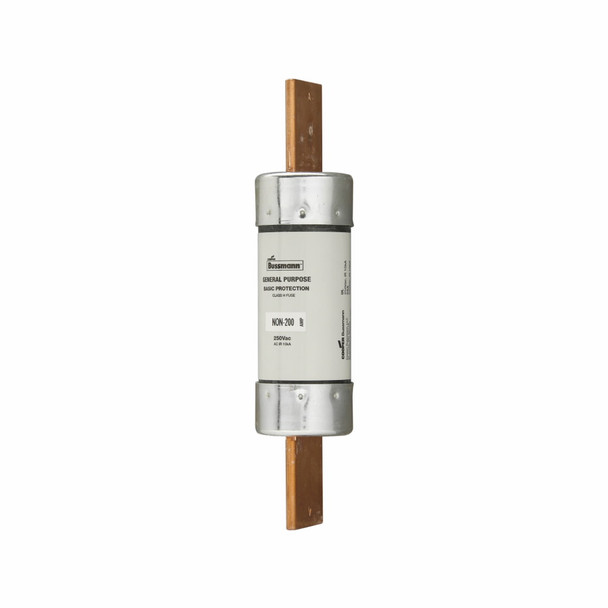

Bussmann NON-200 One Time Fuse
Bussmann One Time Fuse, Non-Current Limiting, Series: NON, Non-Indicating, Non-Rejection, 200 A, 250 VAC, 10 kA Interrupt, Class: H, Blade Terminal, Holder Mounting, Cartridge Body, Single Element, Melamine, 1.56 in Dia x 7.13 in L Body
Additional Description: BUSS-NON-200 BUSS ONE TIME FUSE
Catalog Description: Eaton Bussmann series NON fuse, Non current limiting, Light duty circuit locations, 200 A, Class H, Non-indicating, Blade end x blade end, 10 kAIC at 250 Vac, Standard, 1, 250 V
Specifications
| UNSPSC | 39121605 |
|---|---|
| Amperage Rating | 200 |
| Amperage Rating | 200 A |
| Body Type | Cartridge |
| Class | H |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 10 |
| Interrupt Rating | 10 kA |
| Material | Melamine |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | NON |
| Terminal Type | Blade |
| Type | Non-Current Limiting |
| Voltage Rating | 250 |
| Voltage Rating | 250 VAC |
