Description

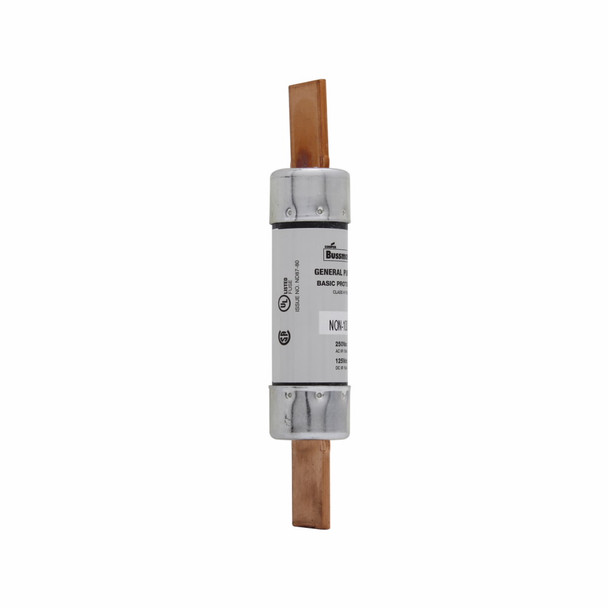

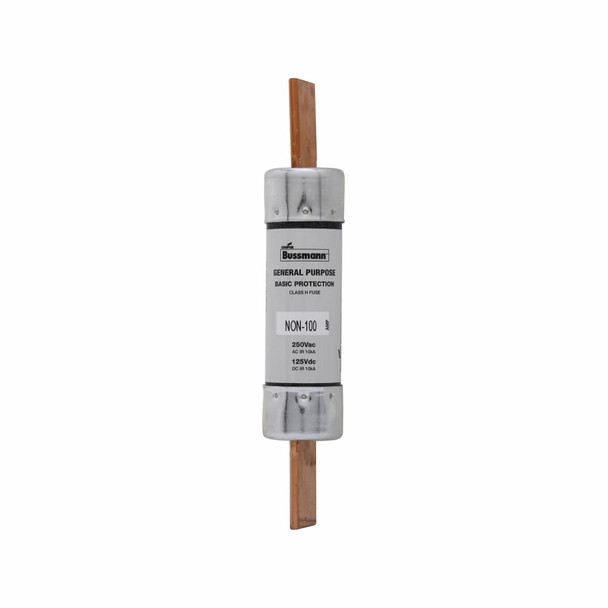

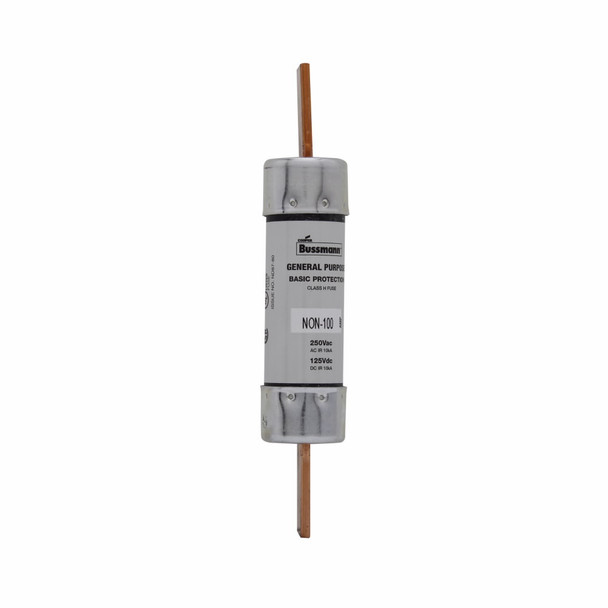

Bussmann NON-100 One Time Fuse
Bussmann One Time Fuse, Non-Current Limiting, Series: NON, Non-Indicating, Non-Rejection, 100 A, 250 VAC, 125 VDC, 10 kA Interrupt, Class: H, Blade Terminal, Holder Mounting, Cartridge Body, Single Element, Melamine, 1.06 in Dia x 5.88 in L Body
Additional Description: BUSS-NON-100 BUSS ONE TIME FUSE
Catalog Description: Eaton Bussmann series NON fuse, Supplemental one-time fuse, Non current limiting, Light duty circuit locations, 100 A, Class H, Non-indicating, Blade end x blade end, 50 kAIC at 125 Vdc,10 kAIC at 250 Vac, Standard, 5, 250 V, 125 Vdc
Specifications
| UNSPSC | 39121605 |
|---|---|
| Amperage Rating | 100 |
| Amperage Rating | 100 A |
| Body Type | Cartridge |
| Class | H |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 10 |
| Interrupt Rating | 10 kA |
| Material | Melamine |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | NON |
| Terminal Type | Blade |
| Type | Non-Current Limiting |
| Voltage Rating | 250 VAC, 125 VDC |
