Description

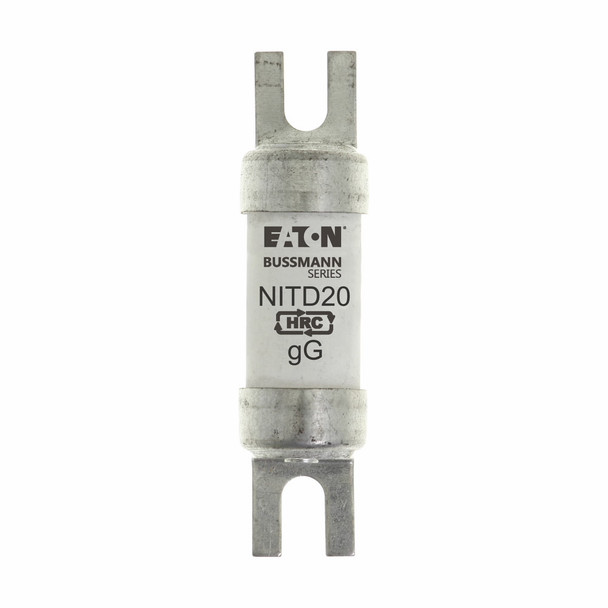

Bussmann NITD20 Fuse Link
Bussmann Fuse Link, Low Voltage Non-Indicating, Series: NITD, 550 V, 20 A, Rated Breaking Capacity: 80 kAIC, Offset Bolted Blade Mount, For Use With: CAMster Fuse Holder, Class C/gG/gL Fuse, Ceramic, 13.8 mm Dia x 55 mm L
Additional Description: BUSS-NITD20 20AMP 550V AC BS88 FUSE
Catalog Description: Fuse-link, LV, 20 A, AC 550 V, BS88/A1, 14 x 55 mm, gL/gG, BS
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 20 |
| Amperage Rating | 20 A |
| Body Type | Cartridge Blade |
| Class | gG |
| Dimensions | 13.8 mm Dia x 55 mm L |
| Interrupt Rating | 80 |
| Material | Ceramic |
| Mounting type | Offset Bolted Blade |
| Mounting type | Stud |
| Rated Breaking Capacity | 80 |
| Rated Breaking Capacity | 80 kAIC |
| Series | NITD |
| Suitable For Use With | CAMster Fuse Holder, Class C/gG/gL Fuse |
| Suitable For Use With | CAMster Series Fuse Holder |
| Terminal Type | Bolt Down |
| Type | Low Voltage Non-Indicating |
| Type | Offset Bolted Tag Non-Indicating |
| Voltage Rating | 550 |
| Voltage Rating | 550 V |
