Description

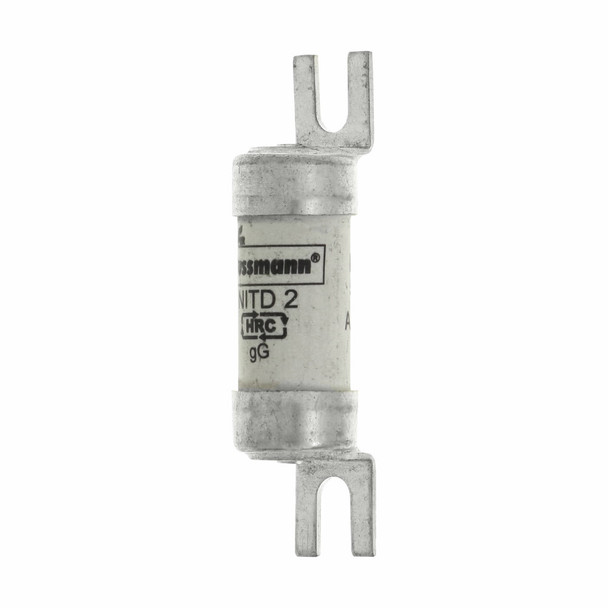

Bussmann NITD2 Fuse Link
Bussmann Fuse Link, Low Voltage Non-Indicating British Standard, Series: NITD, 550 V, 2 A, Rated Breaking Capacity: 80 kA, Offset Bolted Blade Tag Mounting, For Use With: CAMster Fuse Holder, Class C gG/gL Fuse, Ceramic, 13.8 mm Dia x 55 mm L Dimensions
Additional Description: BUSS-NITD2 2AMP 550V AC BS88 FUSE
Catalog Description: Fuse-link, LV, 2 A, AC 550 V, BS88/A1, 14 x 55 mm, gL/gG, BS
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 2 |
| Amperage Rating | 2 A |
| Dimensions | 13.8 mm Dia x 55 mm L |
| Material | Ceramic |
| Mounting type | Offset Bolted Blade |
| Mounting type | Offset Bolted Blade Tag |
| Rated Breaking Capacity | 80 |
| Rated Breaking Capacity | 80 kA |
| Series | NITD |
| Suitable For Use With | CAMster Fuse Holder, Class C gG/gL Fuse |
| Suitable For Use With | CAMster Series Fuse Holder |
| Type | Low Voltage Non-Indicating |
| Type | Low Voltage Non-Indicating British Standard |
| Voltage Rating | 550 |
| Voltage Rating | 550 V |
