Description

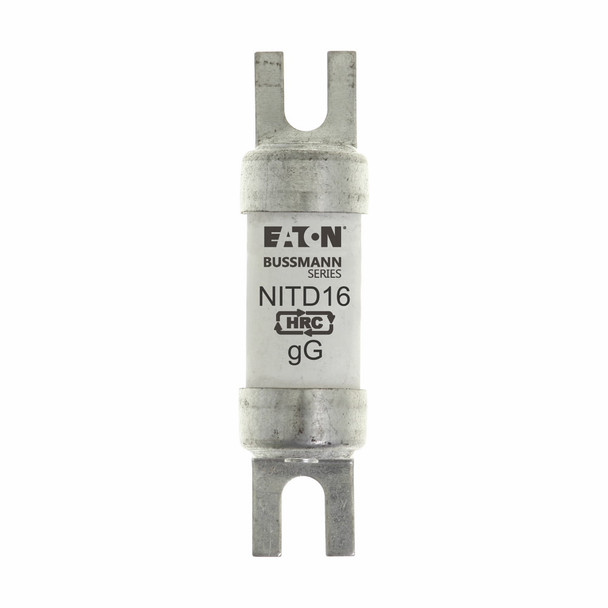

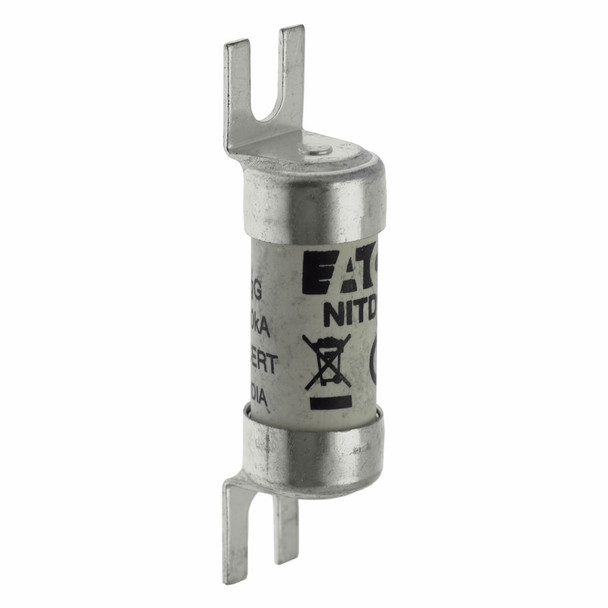

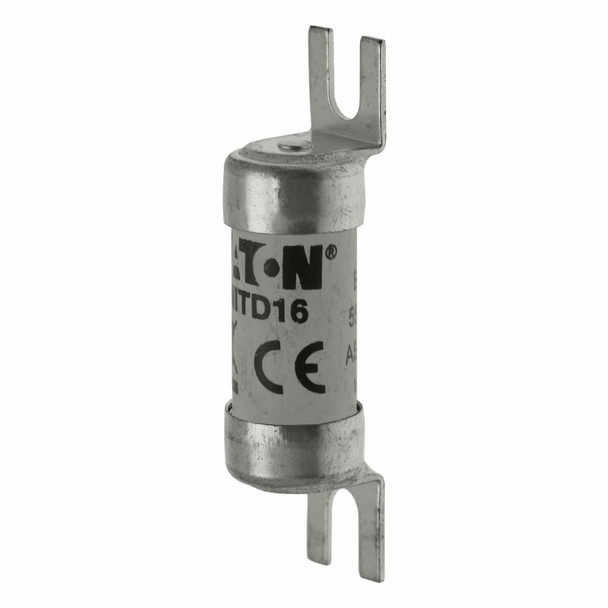

Bussmann NITD16 Fuse Link
Bussmann Fuse Link, Cartridge High Rupture Capacity Low Voltage Non-Indicating, Series: NITD, 550 VAC, 16 A, Rated Breaking Capacity: 80 kA, Stud Mount, For Use With: CAMster Series Fuse Holder, Ceramic, 13.7 mm Dia x 55.2 mm L
Additional Description: BUSS-NITD16 16AMP 550V AC BS88 FUSE
Catalog Description: Fuse-link, LV, 16 A, AC 550 V, BS88/A1, 14 x 55 mm, gL/gG, BS
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 16 |
| Amperage Rating | 16 A |
| Class | gG |
| Dimensions | 13.7 mm Dia x 55.2 mm L |
| Interrupt Rating | 80 |
| Material | Ceramic |
| Mounting type | Stud |
| Rated Breaking Capacity | 80 |
| Rated Breaking Capacity | 80 kA |
| Series | NITD |
| Suitable For Use With | CAMster Series Fuse Holder |
| Terminal Type | Bolt Down |
| Type | Cartridge High Rupture Capacity Low Voltage Non-Indicating |
| Type | Non-Indicating |
| Voltage Rating | 550 |
| Voltage Rating | 550 VAC |
