Description

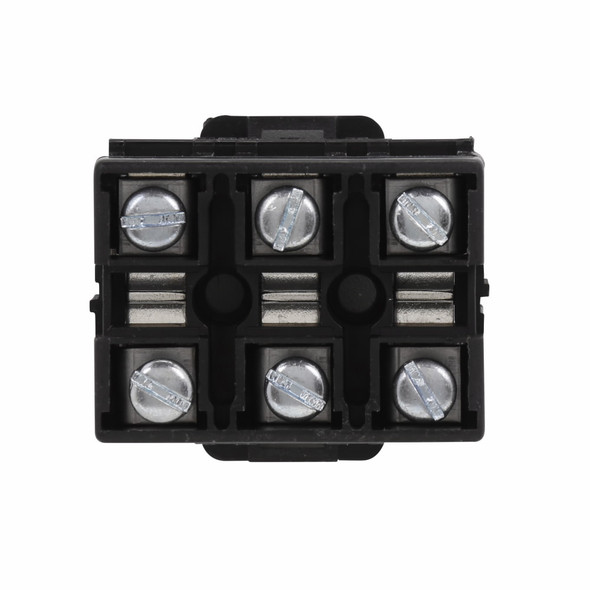

Bussmann NDN111-WH
Bussmann Terminal Block, Series: NDN, 600 V, 90 A, 3 Pole, 18 to 2 AWG Wire, Feed-Through Terminal, 16.31 mm Spacing, 32 in-lb, DIN Rail Mount, #1/4-28 Screw, 105 deg C, Thermoplastic, White, 1.87 in W x 1.44 in D x 1.71 in H
Additional Description: BUSS-NDN111-WH TERM. CONN. BLOCK
Catalog Description: Eaton Bussmann series NDN DIN-rail feedthrough, 600 V, 90 A, 3-pole, 1/4 inches-28 TPI Screw, 35 mm DIN rail, C-rail, base, White
Specifications
| UNSPSC | 39121410 |
|---|---|
| Amperage Rating | 90 |
| Amperage Rating | 90 A |
| Color | White |
| Connection type | #1/4-28 Screw |
| Connection type | Screw |
| Dimensions | 1.71 in H x 1.87 in W x 1.44 in D |
| Dimensions | 1.87 in W x 1.44 in D x 1.71 in H |
| Material | Thermoplastic |
| Mounting type | C Rail/DIN Rail |
| Mounting type | DIN Rail |
| Number of Poles | 3 |
| Series | NDN |
| Spacing | 16.31 |
| Spacing | 16.31 mm |
| Temperature Rating (Degrees F) | 105 |
| Temperature Rating (Degrees F) | 105 deg C |
| Terminal Type | Feed-Through |
| Torque Rating | 32 |
| Torque Rating | 32 in-lb |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
| Wire Size | 18 to 2 |
| Wire Size | 18 to 2 AWG |
