Description

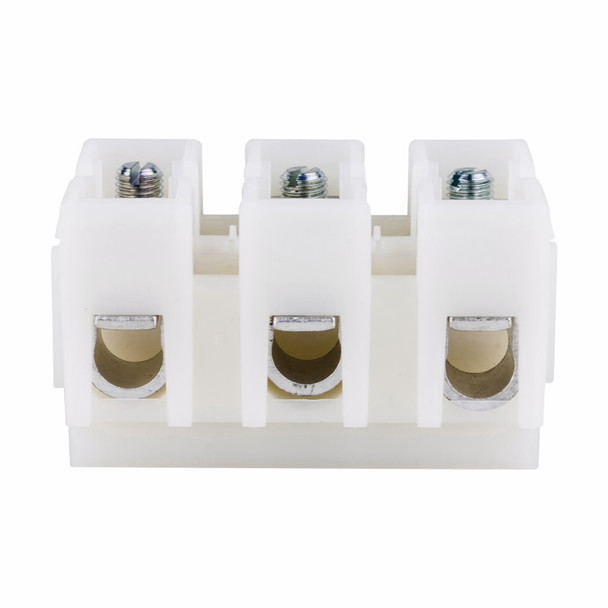

Bussmann NC3-WH
Bussmann Terminal Block, Feed-Through, Series: NC3, 600 V, 175 A, 3 Pole, 14 to 2/0 AWG Aluminum/Copper Wire, Screw Clamp Terminal, 1.06 in Spacing, 45 in-lb Torque, C-Rail/Surface Mount, 5/16-24 Screw, 105 deg C, PVC, White, 3.12 in L x 1.75 in W x 1.75 in H
Additional Description: BUSS-NC3-WH TERM BLOCK WHITE
Catalog Description: Eaton Bussmann series NC3 C-rail feedthrough, 600V, 175A, Three-pole, 5/16 in-24 TPI Screw, C-Rail, Base, White
Specifications
| UNSPSC | 39121410 |
|---|---|
| Amperage Rating | 175 A |
| Color | White |
| Connection type | 5/16-24 Screw |
| Dimensions | 3.12 in L x 1.75 in W x 1.75 in H |
| Material | PVC |
| Mounting type | C-Rail/Surface |
| Number of Poles | 3 |
| Series | NC3 |
| Spacing | 1.06 in |
| Temperature Rating (Degrees F) | 105 deg C |
| Terminal Type | Screw Clamp |
| Torque Rating | 45 in-lb |
| Type | Feed-Through |
| Voltage Rating | 600 V |
| Wire Size | 14 to 2/0 AWG Aluminum/Copper |
