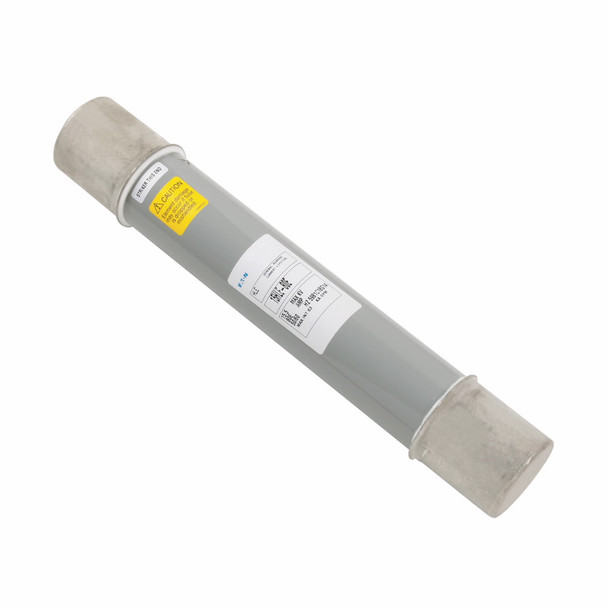

Bussmann MV055F2DAX350E Medium Voltage Fuse
Bussmann Fuse, Current Limiting E-Rated Medium Voltage Double Barrel, Series: MV055, Indicating/Non-Indicating: Non-Indicating, 350 A, 5.5 kV, 50 kAIC Interrupt, Class: E, Ferrule End Terminal, Tube Body Type, Silver Ribbon Element, Fiberglass Tube, 3 in Dia x 15-3/4 in L Body Size
Additional Description: BUSS-MV055F2DAX350E (N) MEDIUM VOLTAGE E-RATED NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series MV055 E-Rated medium voltage fuse, 5.5 kV, 350A, 50 kAIC, Non Indicating, Current limiting, Ferrule end X ferrule end, Class E, Fiberglass tube, 2
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 350 |
| Amperage Rating | 350 A |
| Amperage Rating | 350E |
| Body Type | Tube |
| Class | E |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 50 |
| Interrupt Rating | 50 kAIC |
| Material | Fiberglass |
| Material | Fiberglass Tube |
| Mounting type | Clip |
| Series | MV055 |
| Terminal Type | Ferrule |
| Terminal Type | Ferrule End |
| Type | 2-Barrel Current Limiting Medium Voltage |
| Type | Current Limiting Double Barrel |
| Type | Current Limiting E-Rated Medium Voltage Double Barrel |
| Voltage Rating | 5.5 |
| Voltage Rating | 5.5 kV |
