Description

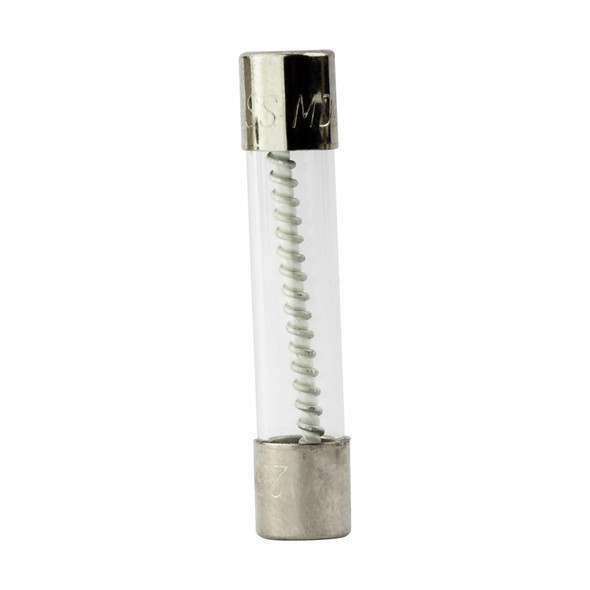

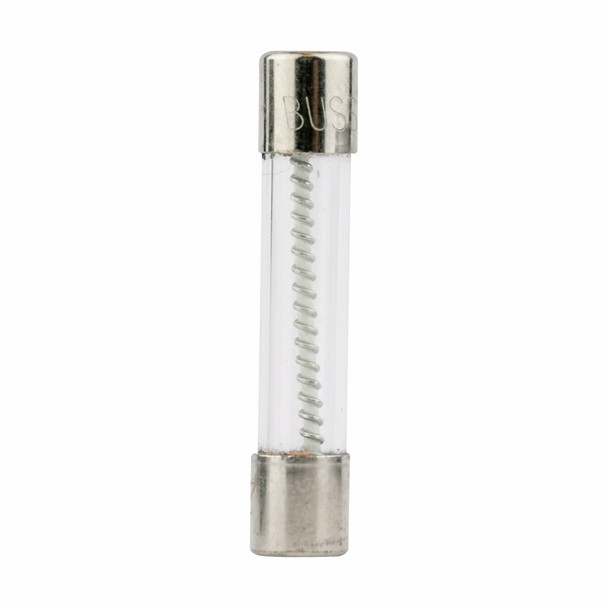

Bussmann MDL-6-R Time Delay Fuse
Bussmann Time Delay Fuse, Series: MDL, Non-Indicating, Non-Rejection, 6 A, 250 VAC, 200 A/10 kA Interrupt, 60 min, 120 s, 12 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 1/4 in Dia x 1-1/4 in L Body
Additional Description: BUSS-MDL-6-R (N) BUSS SMALL DIMENSION FUSE
Catalog Description: Eaton MDL Series Time-delay fuse 6A, 250 Vac, 32 Vdc (self certified)
Specifications
| UNSPSC | 39121607 |
|---|---|
| Amperage Rating | 6 |
| Amperage Rating | 6 A |
| Body Type | Cylindrical |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 A/10 kA |
| Material | Glass |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Response Time | 60 min, 120 s, 12 s |
| Series | MDL |
| Terminal Type | Ferrule |
| Voltage Rating | 250 |
| Voltage Rating | 250 VAC |
