Description

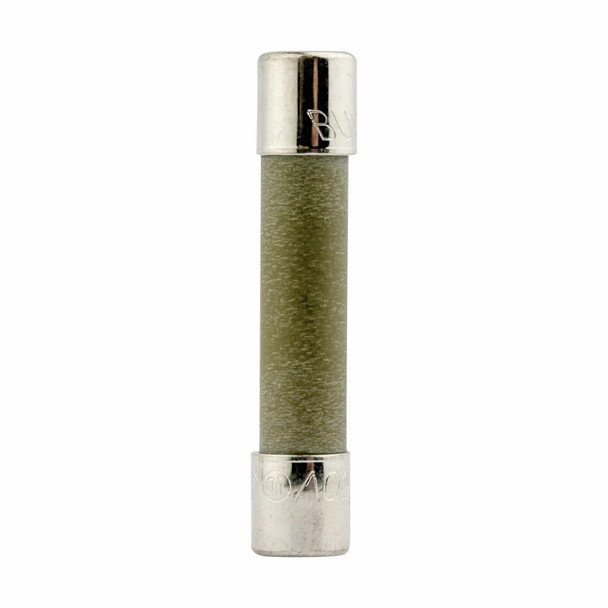

Bussmann MDA-10-R Time Delay Fuse
Bussmann Time Delay Fuse, Electronic Slow Blow, Series: MDA, Non-Indicating, Non-Rejection, 10 A, 250 VAC, 200/10000 A Interrupt, 1 hr at 135%, 2 min at 200% Response, Clip Terminal, Clip/Holder Mount, Cylindrical Body Type, Single Element, Ceramic Tube/Nickel Plated Brass Endcap, 1-1/4 in Dia x 1/4 in H Body Size
Additional Description: BUSS-MDA-10-R BUSS SMALL DIMENSION FUSE (5 PACK)
Catalog Description: Eaton MDA Series Time-delay fuse 10A, 250 Vac, 32 Vdc (self certified), 10 kAIC at 125 Vac
Specifications
| UNSPSC | 39121611 |
|---|---|
| Amperage Rating | 10 |
| Amperage Rating | 10 A |
| Body Type | Cylindrical |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 A/10 kA |
| Interrupt Rating | 200/10000 |
| Interrupt Rating | 200/10000 A |
| Material | Ceramic |
| Material | Ceramic Tube/Nickel Plated Brass Endcap |
| Mounting type | Clip/Holder |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Response Time | 1 hr at 135%, 2 min at 200% |
| Response Time | 60 min, 120 s |
| Series | MDA |
| Terminal Type | Clip |
| Terminal Type | Ferrule |
| Type | Electronic Slow Blow |
| Type | Small Dimension |
| Voltage Rating | 250 |
| Voltage Rating | 250 VAC |
