Description

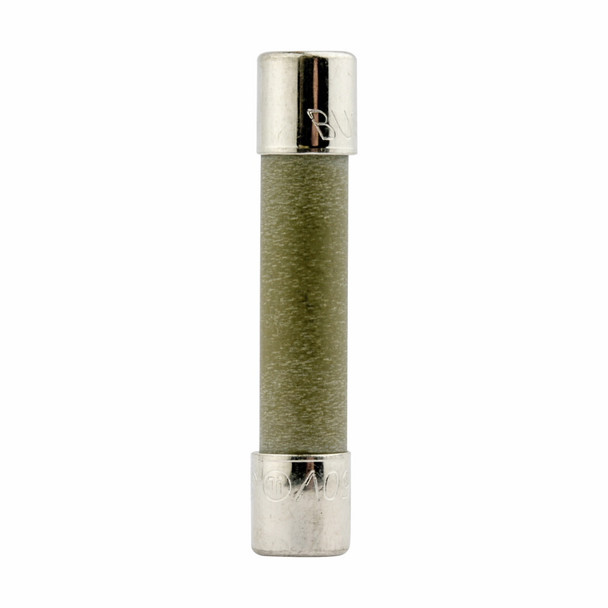

Bussmann MDA-1-1/2-R Time Delay Fuse
Bussmann Time Delay Fuse, Small Dimension, Series: MDA, Non-Indicating, Non-Rejection, 1.5 A, 250 VAC, 100 A/10 kA Interrupt, 60 min, 120 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Ceramic, 1/4 in Dia x 1-1/4 in L Body
Additional Description: BUSS-MDA-1-1/2-R (N) BUSS SMALL DIMENSION FUSE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton MDA Series Time-delay fuse 1.50A, 250 Vac, 32 Vdc (self certified), 100 AIC at 250 Vac
Specifications
| UNSPSC | 39121611 |
|---|---|
| Amperage Rating | 1.5 |
| Amperage Rating | 1.5 A |
| Body Type | Cylindrical |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 100 A/10 kA |
| Material | Ceramic |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Response Time | 60 min, 120 s |
| Series | MDA |
| Terminal Type | Ferrule |
| Type | Small Dimension |
| Voltage Rating | 250 |
| Voltage Rating | 250 VAC |
