Description

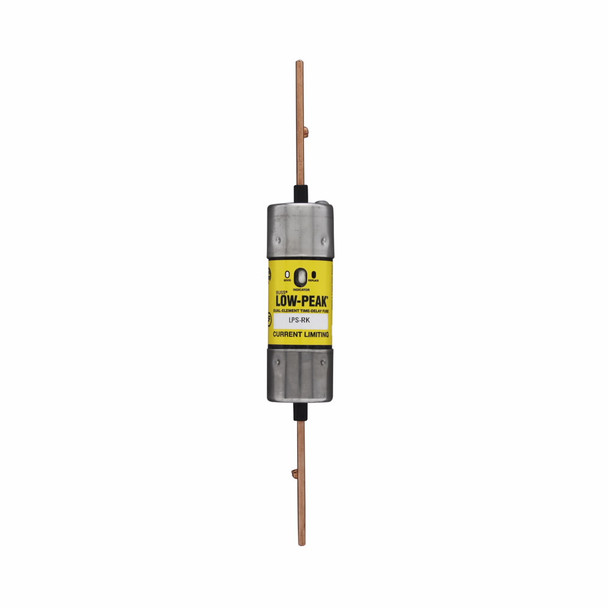

Bussmann LPS-RK-70SPI
Bussmann Low-Peak Fuse, Current Limiting Time Delay, Series: LPS-RK, Indicating/Non-Indicating: Indicating, Rejection/Non-Rejection: Rejection, 70 A, 600 VAC/300 VDC, 300/100 kAIC Interrupt, Class: RK1, 10 s at 500% Response, Blade End Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine, 1.11 in Dia x 7.88 in L Body Size
Additional Description: BUSS-LPS-RK-70SPI INDICATING LPS-RK-70SP
Catalog Description: Eaton Bussmann series LPS-RK fuse, Low-peak fuse, 70 A, Dual, Class RK1, With Indicator, Blade end x blade end, Time delay,Current-limiting, 300 kAIC at 600 V,100 kAIC at 300 Vdc, Standard, 1, 600 V, 300 Vdc
Specifications
| UNSPSC | 39121606 |
|---|---|
| Amperage Rating | 70 A |
| Body Type | Cartridge |
| Class | RK1 |
| Indicating/Non-Indicating | Indicating |
| Interrupt Rating | 300/100 kAIC |
| Material | Melamine |
| Mounting type | Holder |
| Rejection/Non-Rejection | Rejection |
| Response Time | 10 s at 500% |
| Series | LPS-RK |
| Terminal Type | Blade End |
| Type | Current Limiting Time Delay |
| Voltage Rating | 600 VAC/300 VDC |
