Description

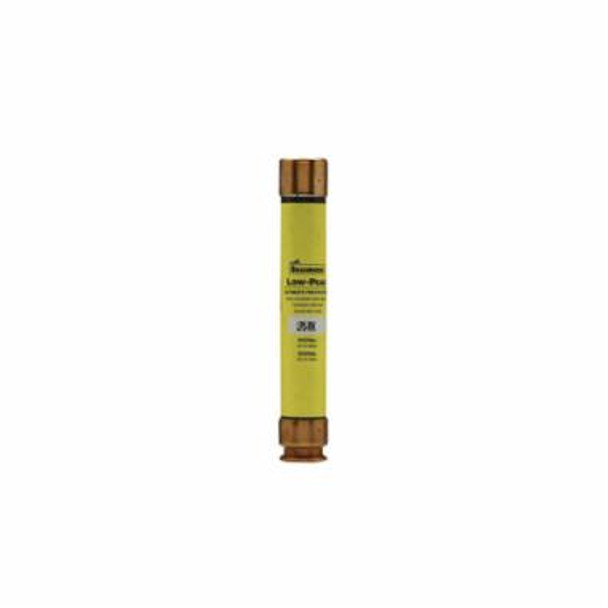

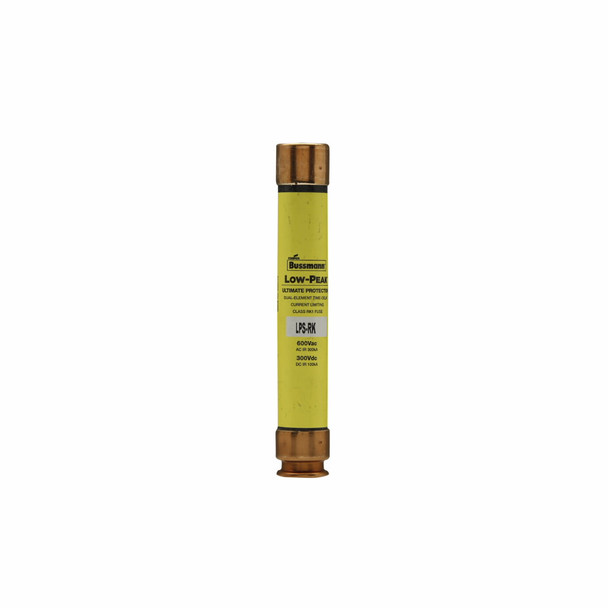

Bussmann LPS-RK-2-1/2SP
Bussmann Low-Peak™ Time Delay Fuse, Current Limiting, Series: LPS-RK, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 2.5 A, 600 VAC/300 VDC, 100/300 kA Interrupt, Class: RK1, 8 s at 500% Response, Ferrule Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine, 0.81 in Dia x 5 in L Body Size
Additional Description: BUSS-LPS-RK-2-1/2SP LOW-PEAK DUAL ELEMENT
Catalog Description: Eaton Bussmann series LPS-RK fuse, Low-peak fuse, 2.5 A, Dual, RK1, Non-indicating, Ferrule end x ferrule end, Time delay,Current-limiting, 10 sec at 500%, 100 kAIC at 300 Vdc,300 kAIC at 600 V, Standard, 10, 600 V, 300 Vdc
Specifications
| UNSPSC | 39121606 |
|---|---|
| Amperage Rating | 2.5 A |
| Body Type | Cartridge |
| Class | RK1 |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 100/300 kA |
| Material | Melamine |
| Mounting type | Holder |
| Rejection/Non-Rejection | Rejection |
| Response Time | 8 s at 500% |
| Series | LPS-RK |
| Terminal Type | Ferrule |
| Type | Current Limiting |
| Voltage Rating | 600 VAC/300 VDC |
