Description

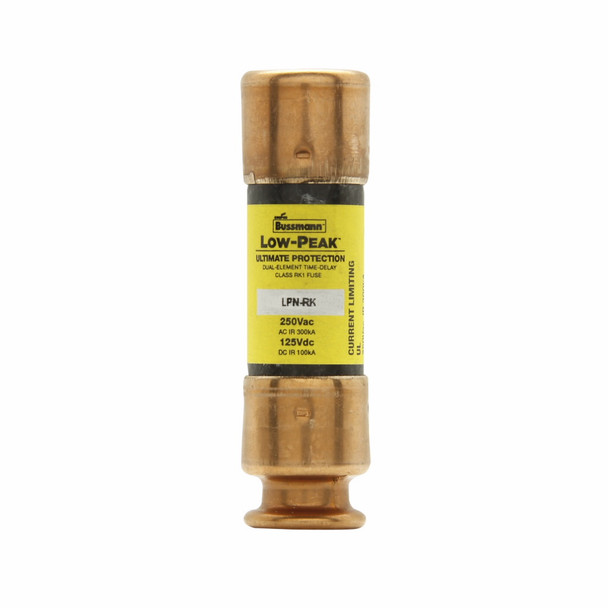

Bussmann LPN-RK-8SP
Bussmann Low-Peak™ Time Delay Fuse, Current Limiting, Series: LPN-RK, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 8 A, 250 VAC/125 VDC, 100/300 kA Interrupt, Class: RK1, 8 s at 500% Response, Ferrule Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine, 0.56 in Dia x 2 in L Body Size
Additional Description: BUSS-LPN-RK-8SP LOW PEAK DUAL ELEMENT
Catalog Description: Eaton Bussmann series LPN-RK fuse, Low-peak fuse, 8 A, Dual, Class RK1, Non-indicating, Ferrule end x ferrule end, Time delay,Current-limiting, 8 sec at 500%, 300 kAIC at 250 V,100 kAIC at 125 Vdc, Standard, 10, 250 V, 125 Vdc
Specifications
| UNSPSC | 39121606 |
|---|---|
| Amperage Rating | 8 A |
| Body Type | Cartridge |
| Class | RK1 |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 100/300 kA |
| Material | Melamine |
| Mounting type | Holder |
| Rejection/Non-Rejection | Rejection |
| Response Time | 8 s at 500% |
| Series | LPN-RK |
| Terminal Type | Ferrule |
| Type | Current Limiting |
| Voltage Rating | 250 VAC/125 VDC |
