Description

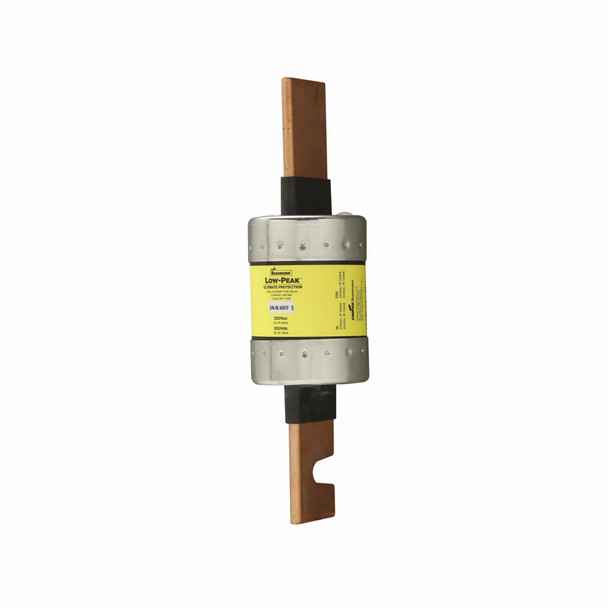

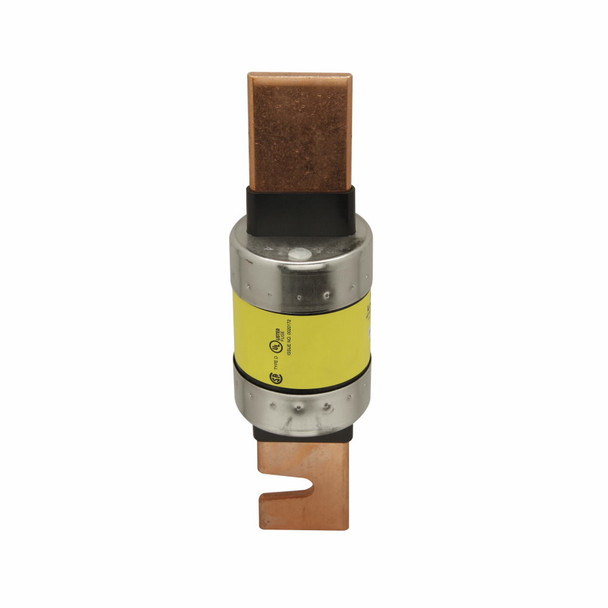

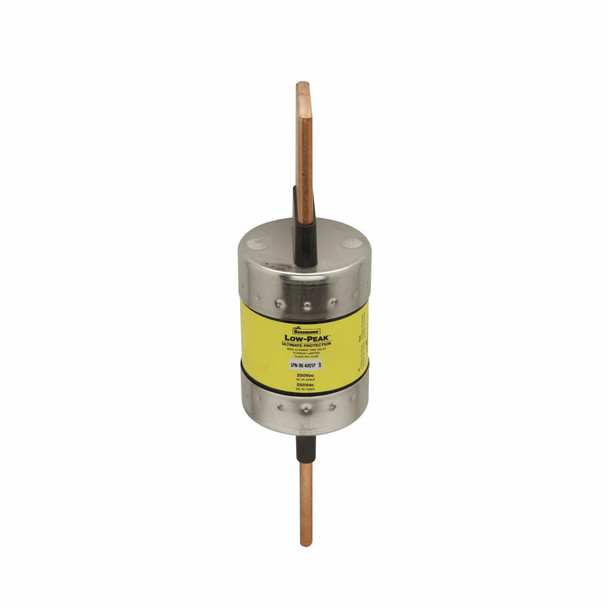

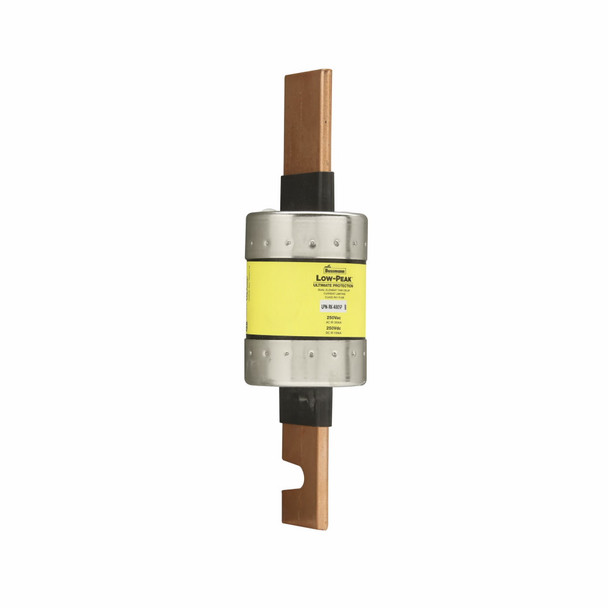

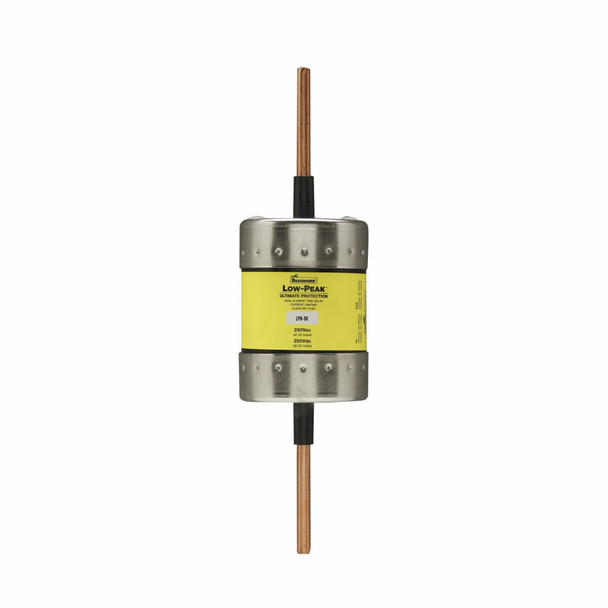

Bussmann LPN-RK-250SP Time Delay Fuse
Bussmann Low-Peak Fuse, Current Limiting Time Delay, Series: LPN-RK, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 250 A, 250 VAC/VDC, 300/100 kAIC Interrupt, Class: RK1, 10 s at 500% Response, Blade End Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine, 2.36 in Dia x 8.63 in L Body Size
Additional Description: BUSS-LPN-RK-250SP LOW PEAK DUAL ELEMENT
Catalog Description: Eaton Bussmann series LPN-RK fuse, Low-peak fuse, 250 A, Dual, Class RK1, Non-indicating, Blade end x blade end, Time delay,Current-limiting, 300 kAIC at 250 V,100 kAIC at 250 Vdc, Standard, 1, 250 V, 250 Vdc
Specifications
| UNSPSC | 39121606 |
|---|---|
| Amperage Rating | 250 |
| Amperage Rating | 250 A |
| Body Type | Cartridge |
| Class | RK1 |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 300/100 |
| Interrupt Rating | 300/100 kAIC |
| Material | Melamine |
| Mounting type | Holder |
| Rejection/Non-Rejection | Rejection |
| Response Time | 10 |
| Response Time | 10 s at 500% |
| Series | LPN-RK |
| Terminal Type | Blade End |
| Terminal Type | Knife Blade |
| Type | Current Limiting |
| Type | Current Limiting Time Delay |
| Voltage Rating | 250 |
| Voltage Rating | 250 VAC/VDC |
