Description

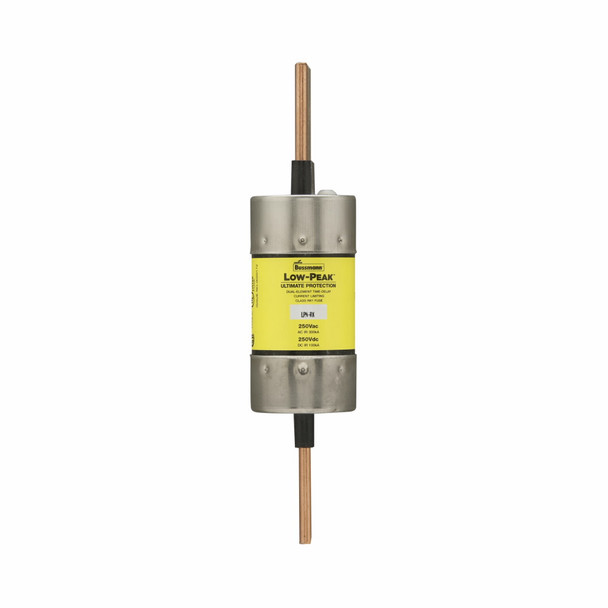

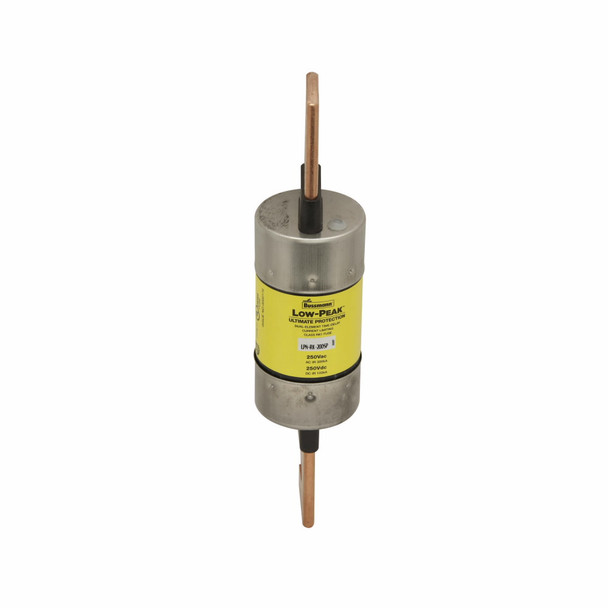

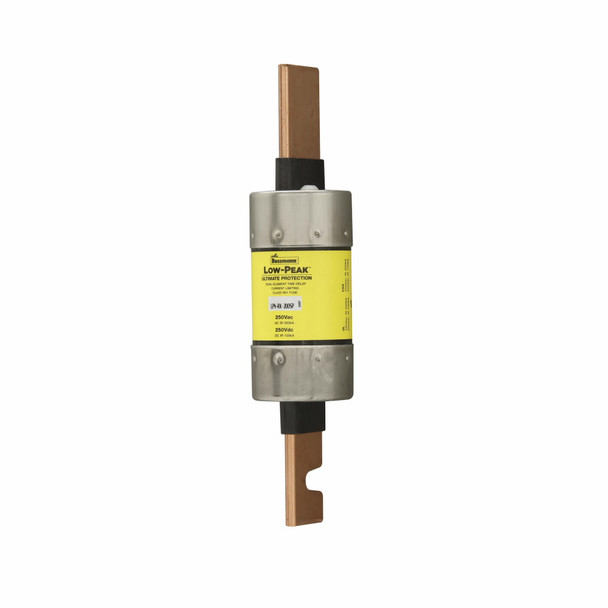

Bussmann LPN-RK-125SP Time Delay Fuse
Bussmann Low-Peak Fuse, Current Limiting Time Delay, Series: LPN-RK, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 125 A, 250 VAC/VDC, 300/100 kAIC Interrupt, Class: RK1, 10 s at 500% Response, Blade End Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine, 0.61 in Dia x 7.13 in L Body Size
Additional Description: BUSS-LPN-RK-125SP LOW PEAK DUAL ELEMENT 125A 250V AC
Catalog Description: Eaton Bussmann Series LPN-RK Fuse,Low Peak Fuse,Current-Limiting,time delay,Electrically isolated end cap,125 A,250 Vac,250 Vdc,300 kAIC at 250 Vac,100 kAIC at 250 Vdc,Class RK1,Dual element,Blade end X blade end connection,LPN-RK1 series
Specifications
| UNSPSC | 39121606 |
|---|---|
| Amperage Rating | 125 A |
| Body Type | Cartridge |
| Class | RK1 |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 300/100 |
| Interrupt Rating | 300/100 kAIC |
| Material | Melamine |
| Mounting type | Holder |
| Rejection/Non-Rejection | Rejection |
| Response Time | 10 |
| Response Time | 10 s at 500% |
| Series | LPN-RK |
| Terminal Type | Blade End |
| Terminal Type | Knife Blade |
| Type | Current Limiting |
| Type | Current Limiting Time Delay |
| Voltage Rating | 250 |
| Voltage Rating | 250 VAC/VDC |
