Description

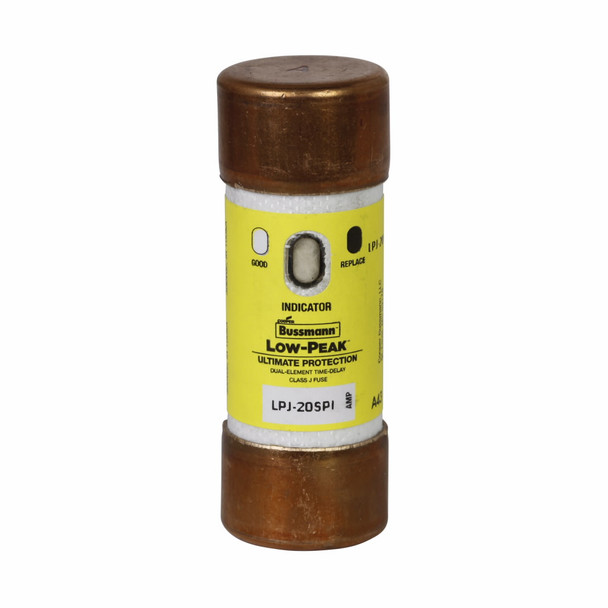

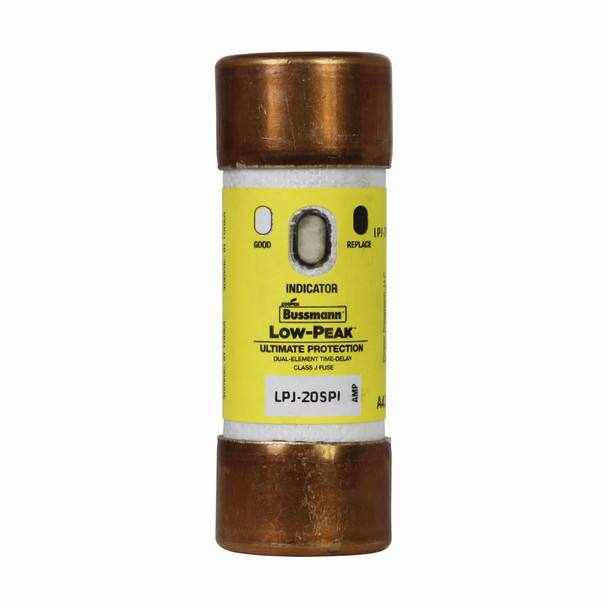

Bussmann LPJ-20SPI Time Delay Fuse
Bussmann Low-Peak Time Delay Fuse, Current Limiting, Series: LPJ, Indicating/Non-Indicating: Indicating, Rejection/Non-Rejection: Non-Rejection, 20 A, 600 VAC/300 VDC, 100/300 kA Interrupt, Class: J, 10 s at 500% Response, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine, 0.81 in Dia x 2.25 in L Body Size
Additional Description: BUSS-LPJ-20SPI LOW PEAK CLASS J T/D
Catalog Description: Eaton Bussmann series LPJ fuse, Low-peak fuse, 20 A, Dual, Class J, With Indicator, Ferrule end x ferrule end, Time delay,Current-limiting, 10 sec at 500%, 100 kAIC Vdc,300 kAIC at 600 V, Standard, 600 V, 300 Vdc
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 20 |
| Amperage Rating | 20 A |
| Body Type | Cylindrical |
| Class | J |
| Indicating/Non-Indicating | Indicating |
| Interrupt Rating | 100/300 kA |
| Interrupt Rating | 300/100 |
| Material | Melamine |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Response Time | 10 |
| Response Time | 10 s at 500% |
| Series | LPJ |
| Terminal Type | Ferrule |
| Type | Current Limiting |
| Voltage Rating | 600 VAC/300 VDC |
