Description

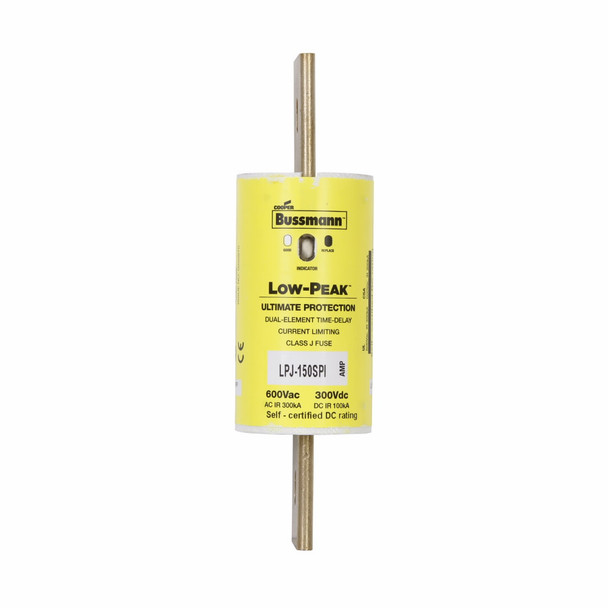

Bussmann LPJ-150SPI Time Delay Fuse
Bussmann Low-Peak Fuse, Current Limiting Time Delay, Series: LPJ, Indicating/Non-Indicating: Indicating, Rejection/Non-Rejection: Non-Rejection, 150 A, 600 VAC/300 VDC, 300/100 kAIC Interrupt, Class: J, 10 s at 500% Response, Bolted Blade End Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine, 1.63 in Dia x 5.75 in L Body Size
Additional Description: BUSS-LPJ-150SPI INDICATING LPJ-150SP
Catalog Description: Eaton Bussmann series LPJ fuse, Low-peak fuse, 150 A, Dual, Class J, With Indicator, Bolted blade end x bolted blade end, Time delay,Current-limiting, 10 sec at 500%, 100 kAIC Vdc,300 kAIC at 600 V, Standard, 600 V, 300 Vdc
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 150 |
| Amperage Rating | 150 A |
| Body Type | Cartridge |
| Class | J |
| Indicating/Non-Indicating | Indicating |
| Interrupt Rating | 300/100 |
| Interrupt Rating | 300/100 kAIC |
| Material | Melamine |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Response Time | 10 |
| Response Time | 10 s at 500% |
| Series | LPJ |
| Terminal Type | Bolted Blade End |
| Terminal Type | Knife Blade |
| Type | Current Limiting |
| Type | Current Limiting Time Delay |
| Voltage Rating | 600 VAC/300 VDC |
