Description

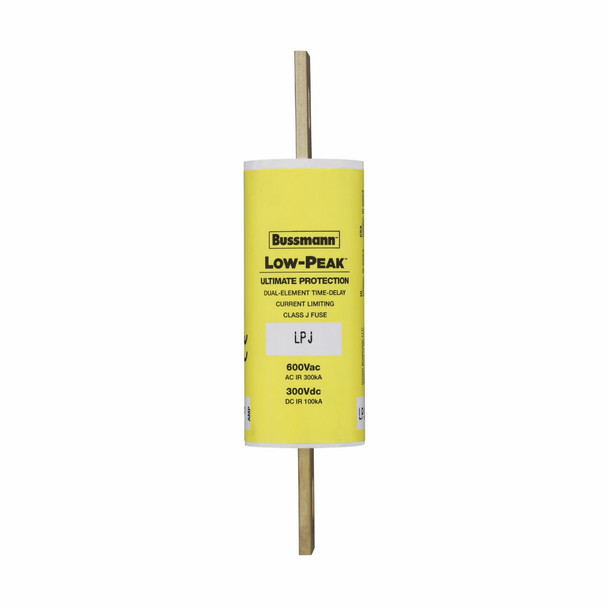

Bussmann LPJ-100SP Time Delay Fuse
Bussmann Low-Peak Time Delay Fuse, Current Limiting, Series: LPJ, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 100 A, 600 VAC/300 VDC, 300/100 kA Interrupt, Class: J, 10 s Response, Knife Blade Terminal, Holder Mount, Cartridge Body, Dual Element, Melamine, 1.13 in Dia x 4.63 in L Body Size
Additional Description: BUSS-LPJ-100SP LOW-PEAK CLASS J T/D
Catalog Description: BUSSMAN FUSE 600V (55
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 100 |
| Amperage Rating | 100 A |
| Body Type | Cartridge |
| Class | J |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 300/100 |
| Interrupt Rating | 300/100 kA |
| Material | Melamine |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Response Time | 10 |
| Response Time | 10 s |
| Series | LPJ |
| Terminal Type | Knife Blade |
| Type | Current Limiting |
| Voltage Rating | 600 VAC/300 VDC |
