Description

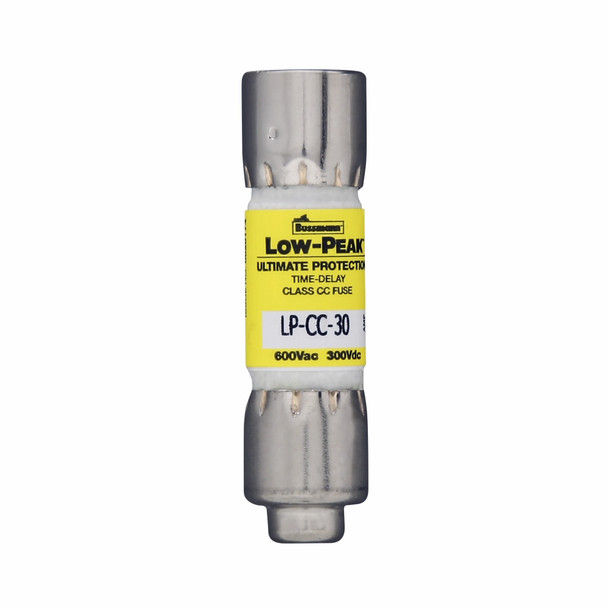

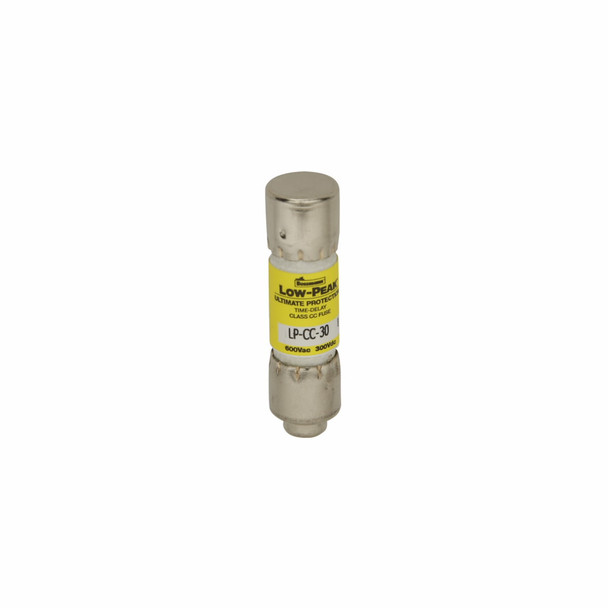

Bussmann LP-CC-2-1/4 Time Delay Fuse
Bussmann Low-Peak Time Delay Fuse, Current Limiting, Series: LP-CC, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 2.25 A, 600 VAC/300 VDC, 20/200 kA Interrupt, Class: CC, 12 s at 200% Response, Ferrule Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine, 13/32 in Dia x 1-1/2 in L Body Size
Additional Description: BUSS-LP-CC-2-1/4 LOW PEAK CC TIME DELAY TIME D
Catalog Description: Eaton Bussmann series LP-CC fuse, Current-limiting time-delay fuse, Rejection style, 2.25 A, Dual, CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 20 kAIC at 300 Vdc,200 kAIC at 600 V, Melamine tube, 10, 600 V, 300 Vdc
Specifications
| UNSPSC | 39121606 |
|---|---|
| Amperage Rating | 2.25 |
| Amperage Rating | 2.25 A |
| Body Type | Cartridge |
| Class | CC |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 20/200 |
| Interrupt Rating | 20/200 kA |
| Material | Melamine |
| Mounting type | Holder |
| Rejection/Non-Rejection | Rejection |
| Response Time | 12 |
| Response Time | 12 s at 200% |
| Series | LP-CC |
| Terminal Type | Ferrule |
| Type | Current Limiting |
| Voltage Rating | 600 VAC/300 VDC |
