Description

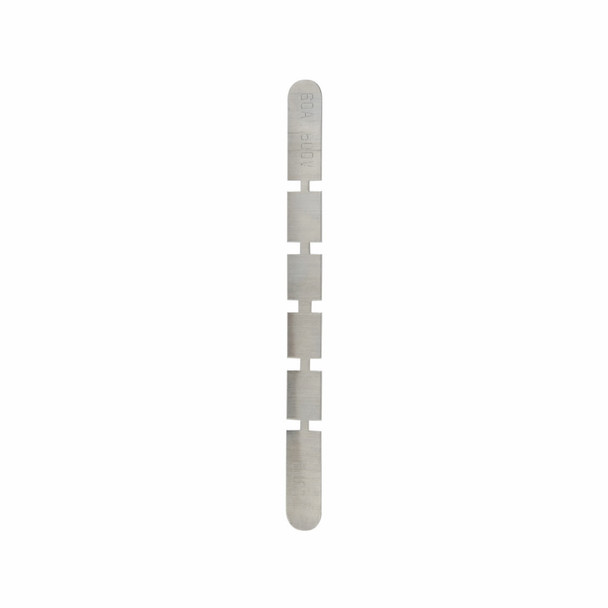

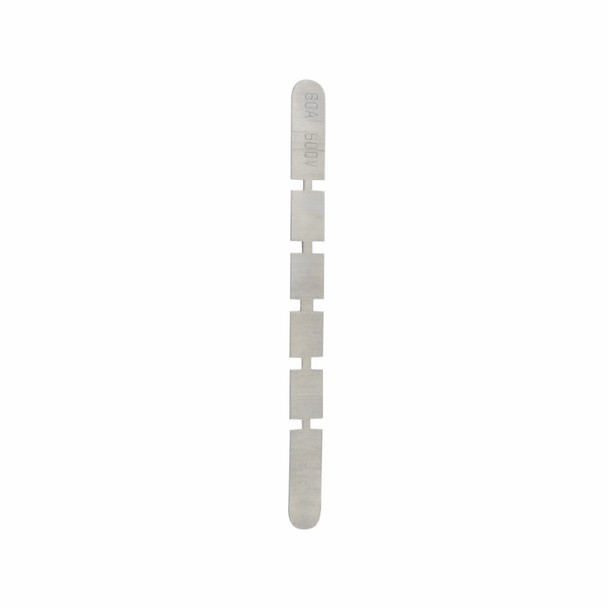

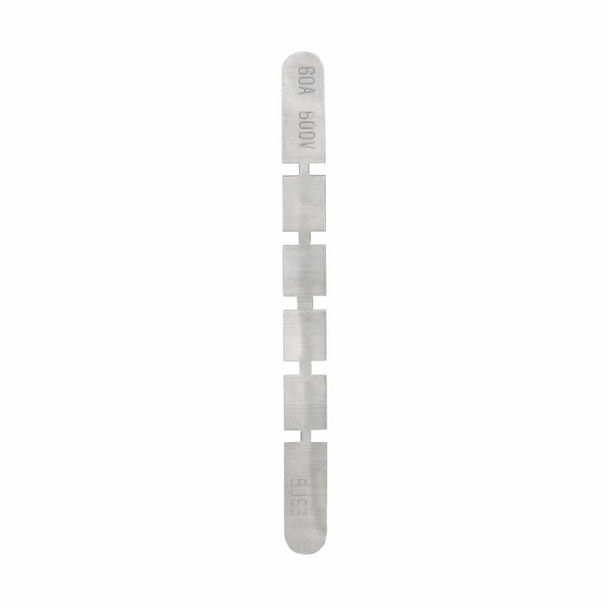

Bussmann LKS-60 Fuse Link
Bussmann Super-Lag Renewable Fuse Link, Non-Current Limiting, Series: LKS, 600 V, 60 A, Rated Breaking Capacity: 10 kA, Timing Response: Time-Lag, Stud Mount, For Use With: RES-60 Class H/K5 5.5 in L Fuse, 6 in L x 1 in W x 1 in H
Additional Description: BUSS-LKS-60 SUPER LAG RENEWABLE LINK
Catalog Description: Eaton Bussmann series LKS fuse link, 600V, 60A, Class H, K5
Specifications
| UNSPSC | 39121606 |
|---|---|
| Amperage Rating | 60 A |
| Dimensions | 6 in L x 1 in W x 1 in H |
| Mounting type | Stud |
| Rated Breaking Capacity | 10 |
| Rated Breaking Capacity | 10 kA |
| Rated Breaking Capacity | 10000 |
| Series | LKS |
| Suitable For Use With | RES-60 Class H 1.06 in Dia x 5.5 in L Fuse |
| Suitable For Use With | RES-60 Class H/K5 5.5 in L Fuse |
| Type | Non-Current Limiting |
| Type | Non-Current Limiting Renewable |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
