Description

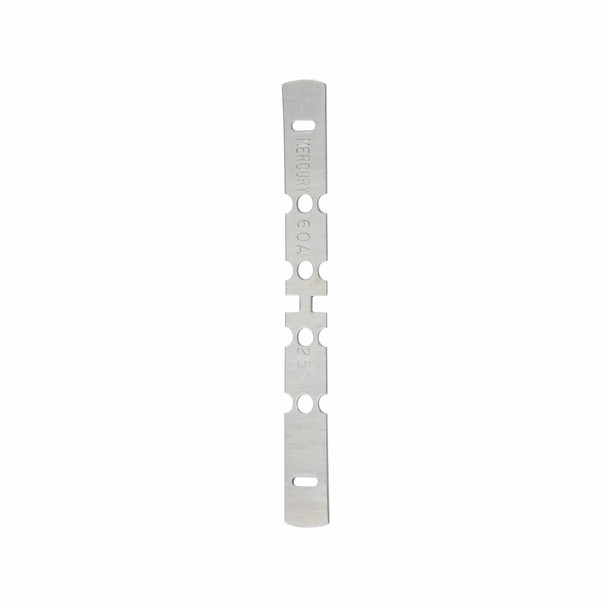

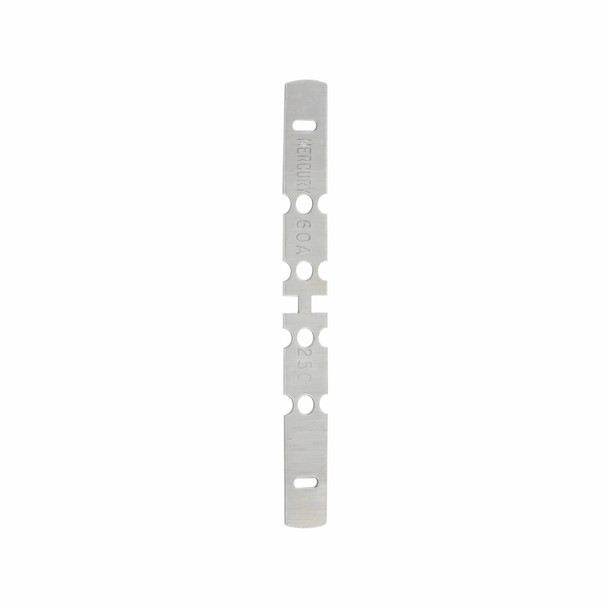

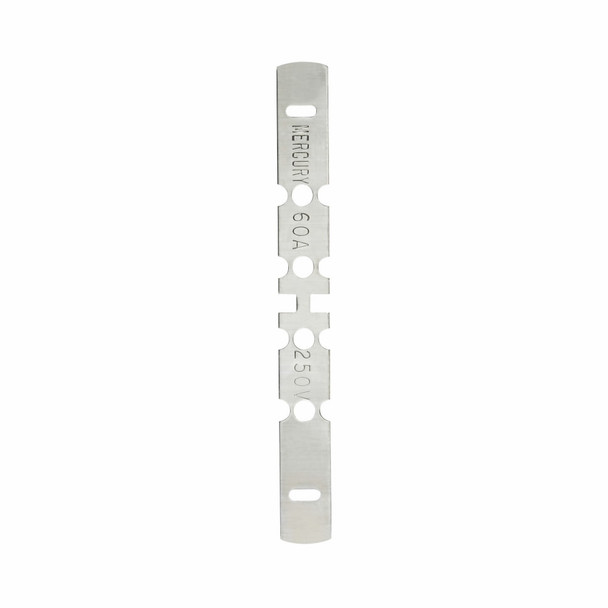

Bussmann LKN-60
Edison Fuse Link, Non-Current Limiting Renewable, Series: LKN, 250 VAC, 60 A, Rated Breaking Capacity: 10000 A, Timing Response: Super Lag/Time Lag, Stud Mount, For Use With: REN-60 Class H 0.81 in Dia x 3 in L Fuse, 3 in L x 1 in W x 1 in H
Additional Description: BUSS-LKN-60 SUPER LAG RENEW. LINK 60/250
Catalog Description: Eaton Bussmann series LKN fuse link,250V,60A,Class H, K5
Specifications
| UNSPSC | 39121606 |
|---|---|
| Amperage Rating | 60 A |
| Dimensions | 3 in L x 1 in W x 1 in H |
| Mounting type | Stud |
| Rated Breaking Capacity | 10 kA |
| Rated Breaking Capacity | 10000 A |
| Series | LKN |
| Suitable For Use With | REN-60 Class H 0.81 in Dia x 3 in L Fuse |
| Suitable For Use With | REN-60 Class H/K5 3 in L Fuse |
| Type | Non-Current Limiting Renewable |
| Type | Non-Current Limiting Renewable Class KS |
| Voltage Rating | 250 V |
| Voltage Rating | 250 VAC |
