Description

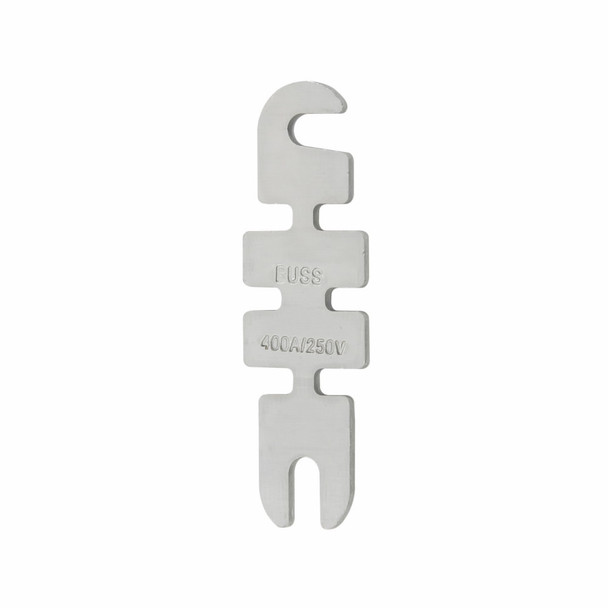

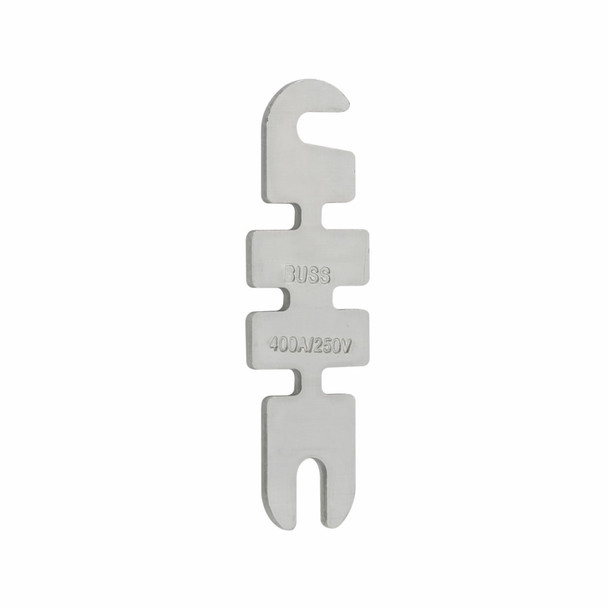

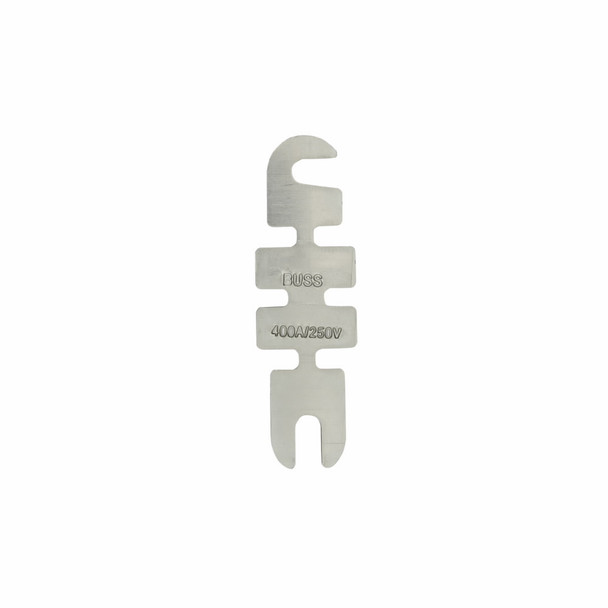

Bussmann LKN-400 Fuse Link
Bussmann Super-Lag Fuse Link, Non-Current Limiting Renewable Class KS, Series: LKN, 250 V, 400 A, Rated Breaking Capacity: 10 kA, Timing Response: Time Lag, Holder Mount, For Use With: REN-400 Class H/K5 8.63 in L Fuse, 3.622 in L x 1.339 in W x 1.102 in H
Additional Description: BUSS-LKN-400 SUPER LAG RENEWABLE LINK
Catalog Description: Eaton Bussmann series LKN fuse link, 250V, 400A, Class H, K5
Specifications
| UNSPSC | 39121606 |
|---|---|
| Amperage Rating | 400 |
| Amperage Rating | 400 A |
| Dimensions | 3.622 in L x 1.339 in W x 1.102 in H |
| Mounting type | Holder |
| Mounting type | Stud |
| Rated Breaking Capacity | 10 |
| Rated Breaking Capacity | 10 kA |
| Rated Breaking Capacity | 10000 |
| Series | LKN |
| Suitable For Use With | REN-400 Class H 8.63 in L Fuse |
| Suitable For Use With | REN-400 Class H/K5 8.63 in L Fuse |
| Type | Non-Current Limiting Renewable |
| Type | Non-Current Limiting Renewable Class KS |
| Voltage Rating | 250 |
| Voltage Rating | 250 V |
