Description

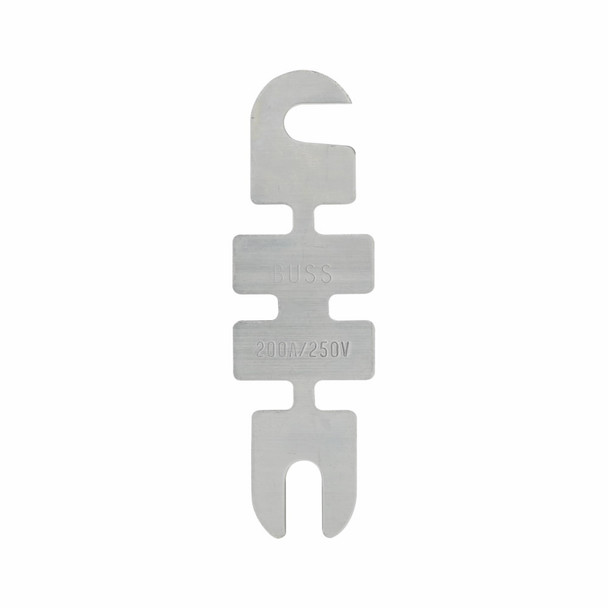

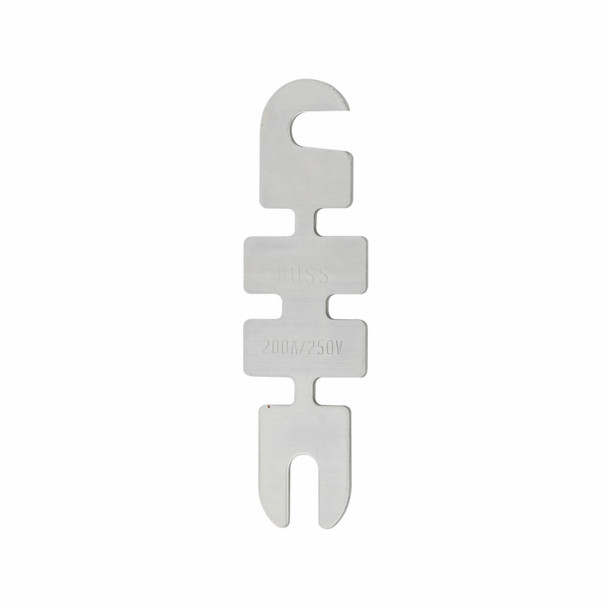

Bussmann LKN-200 Super-Lag Fuse Link
Bussmann Super-Lag Renewable Fuse Link, Non-Current Limiting Non-Indicating, Series: LKN, 250 V, 200 A, Rated Breaking Capacity: 10 kA, Timing Response: Time-Lag, Holder Mount, For Use With: REN-200 Class H/K5 7.13 in L Fuse, 3.6 in L x 1.3 in W x 1.1 in H
Additional Description: BUSS-LKN-200 SUPER LAG RENEWABLE LINK
Catalog Description: Eaton Bussmann series LKN fuse link, 250V, 200A, Class H, K5, Non Indicating
Specifications
| UNSPSC | 39121606 |
|---|---|
| Amperage Rating | 200 |
| Amperage Rating | 200 A |
| Dimensions | 3.6 in L x 1.3 in W x 1.1 in H |
| Mounting type | Holder |
| Mounting type | Stud |
| Rated Breaking Capacity | 10 |
| Rated Breaking Capacity | 10 kA |
| Rated Breaking Capacity | 10000 |
| Series | LKN |
| Suitable For Use With | REN-200 Class H 7.13 in L Fuse |
| Suitable For Use With | REN-200 Class H/K5 7.13 in L Fuse |
| Type | Non-Current Limiting Non-Indicating |
| Type | Non-Current Limiting Renewable |
| Voltage Rating | 250 |
| Voltage Rating | 250 V |
