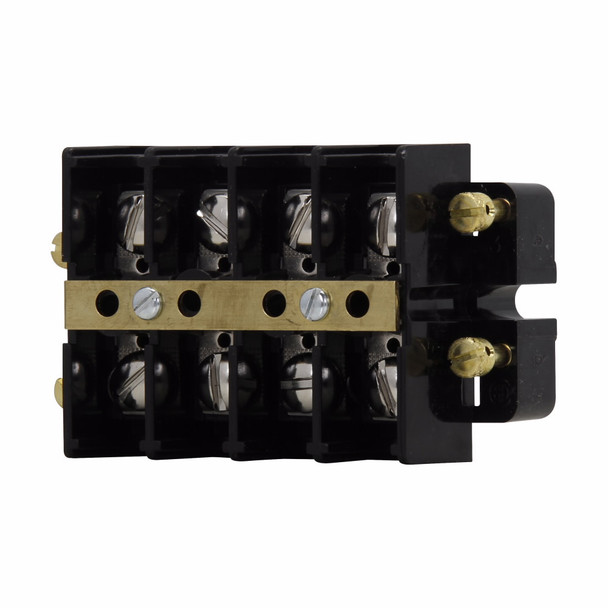

Bussmann KUXSC6-W
Bussmann Terminal Block Strips and Barrier Block, Double Row, 600 V, 60 A, 20 in-lb, Surface Mount, #10-32 TPI Screw, 105 deg C, Noryl/Nickel Plated Brass, Black, 4-1/2 in L x 2 in W x 1-1/4 in H
Additional Description: BUSS-KUXSC6-W TERMINAL CONNECTOR BLOCK
Catalog Description: Eaton Bussmann KU series panel mount terminal block connector, Shorting strap and four shorting screws, Nickel-plated brass washer head, 600V, 60A, Double row, short, Six-pole, #10-32 TPI Screw, Panel, Black, Nickel-plated brass terminal
Specifications
| UNSPSC | 39121410 |
|---|---|
| Amperage Rating | 60 A |
| Color | Black |
| Connection type | #10-32 TPI Screw |
| Dimensions | 4-1/2 in L x 2 in W x 1-1/4 in H |
| Material | Noryl/Nickel Plated Brass |
| Mounting type | Surface |
| Temperature Rating (Degrees F) | 105 deg C |
| Torque Rating | 20 in-lb |
| Type | Double Row |
| Voltage Rating | 600 V |
