Description

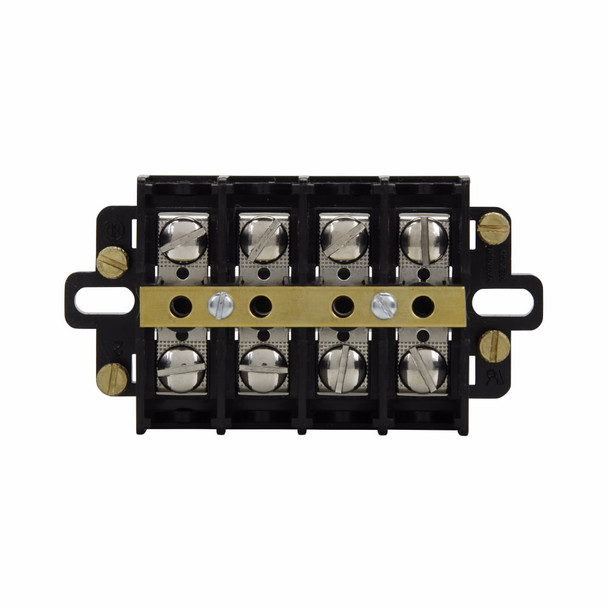

Bussmann KUSC4 Terminal Block Strip
Bussmann Terminal Block, Double Row, Series: KU, 600 VAC, 60 A, 22 to 6 AWG Wire, 20 in-lb Torque, Panel Mounting, 105 deg C, 94V1 Nuclear Grade Noryl, Black, 3-3/4 in L x 2 in W x 1/2 in H Dimensions
Additional Description: BUSS-KUSC4 TERM BLOCK BLACK NOR
Catalog Description: TERM BLOCK BLACK NOR
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 60 A |
| Barrier Style | Double Row |
| Color | Black |
| Connection type | Screw |
| Dimensions | 2 in H x 3-3/4 in W x 1-1/4 in D |
| Dimensions | 3-3/4 in L x 2 in W x 1/2 in H |
| Material | 94V1 Nuclear Grade Noryl |
| Material | Noryl |
| Mounting type | Base/Panel |
| Mounting type | Panel |
| Screw Size | #10 to 32 |
| Series | KU |
| Series | KU Series |
| Spacing | 5/8 |
| Temperature Rating (Degrees F) | 105 |
| Temperature Rating (Degrees F) | 105 deg C |
| Terminal Size | #10-32 |
| Torque Rating | 20 |
| Torque Rating | 20 in-lb |
| Type | Double Row |
| Type | EFSE Standard |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC |
| Wire Size | 22 to 6 |
| Wire Size | 22 to 6 AWG |
| Wire Size | 6 to 22 |
