Description

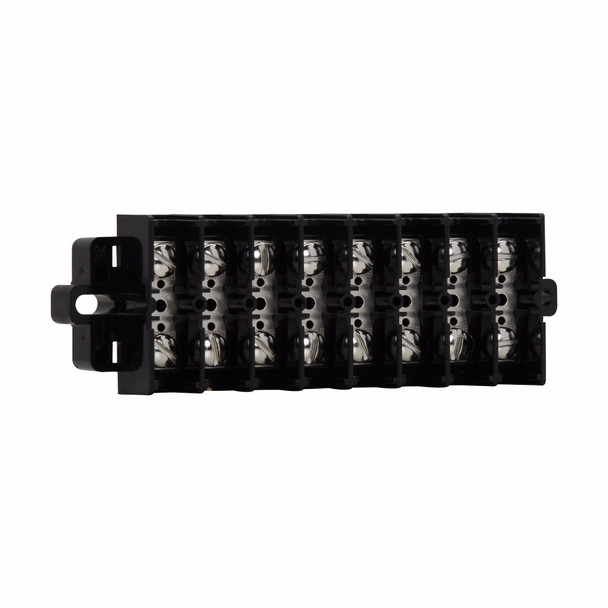

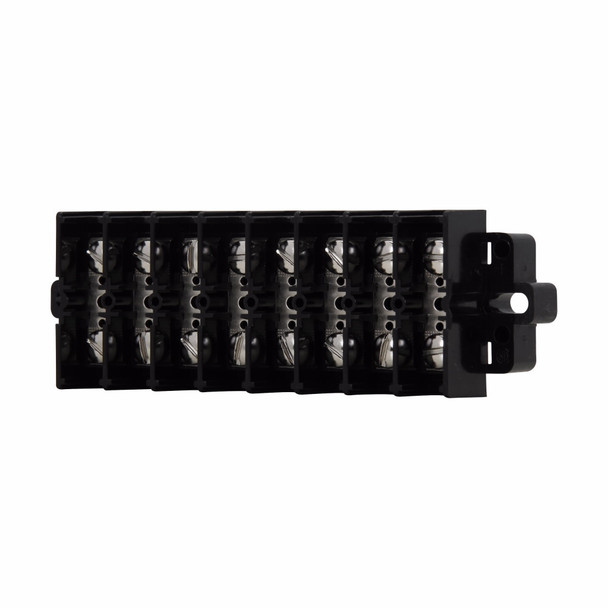

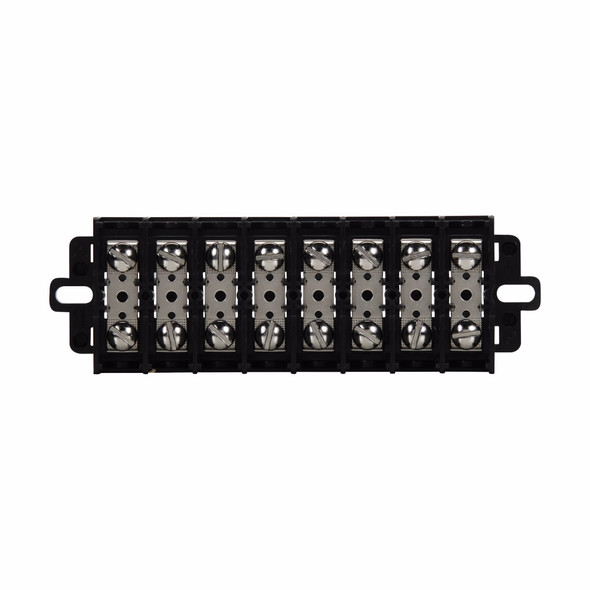

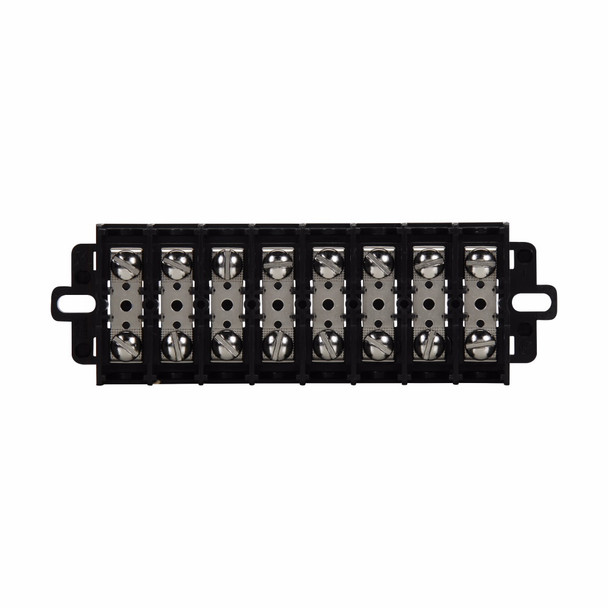

Bussmann KU12-BPWCMT Terminal Block Strips and Barrier Block
Bussmann Terminal Block Strips and Barrier Block, Double Row, 600 V, 60 A, 22 to 6 AWG Wire, 0.62 in Center Spacing, 20 in-lb, #10-32 TPI Screw, 105 deg C, Noryl/Nickel Plated Brass, Black, 8-3/4 in L x 2 in W x 1-1/4 in H
Additional Description: BUSS-KU12-BPWCMT (N) TERMINAL BLOCK NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann KU series panel mount terminal block connector, Top cover and two end plates, 600V, 60A, Barrier, Standard, Twelve-pole, Black, Molded nuclear grade noryl base, nickel-plated brass philslot screw
Specifications
| UNSPSC | 39121410 |
|---|---|
| Amperage Rating | 60 A |
| Color | Black |
| Connection type | #10-32 TPI Screw |
| Connection type | 10 to 32 TPI Screw |
| Dimensions | 8-3/4 in L x 2 in W x 1-1/4 in H |
| Material | Molded Nuclear Grade Noryl |
| Material | Noryl/Nickel Plated Brass |
| Temperature Rating (Degrees F) | 105 |
| Temperature Rating (Degrees F) | 105 deg C |
| Torque Rating | 20 |
| Torque Rating | 20 in-lb |
| Type | Double Row |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
| Wire Size | 22 to 6 |
| Wire Size | 22 to 6 AWG |
