Description

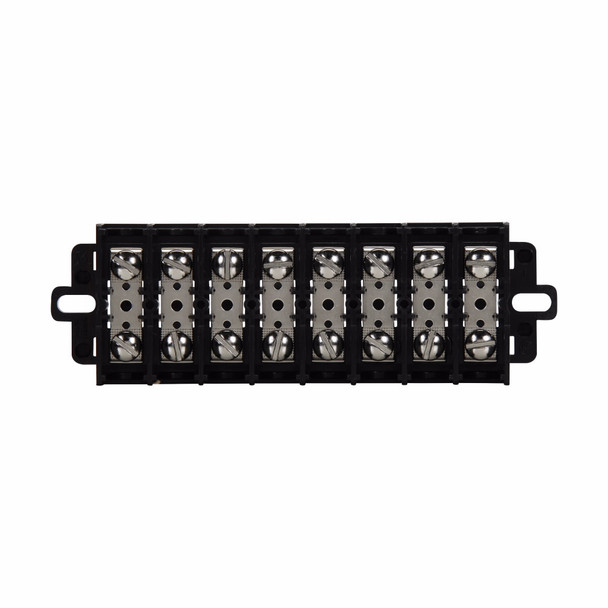

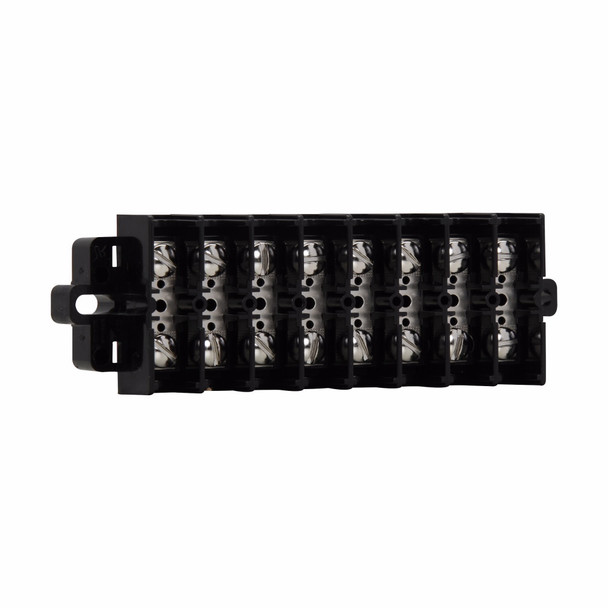

Bussmann KU10-BPWCMT Barrier Block
Bussmann Barrier Block, Double Row Standard, Series: KU Series, 600 V, 60 A, 10 Terminals, 22 to 6 AWG Wire, 0.62 in Center Spacing, Dual Wall Barrier Style, #10-32 Screw, 20 in-lb, Surface Mount, #10-32 TPI Screw, 105 deg C, Noryl/Nickel Plated Brass, Black, 7-1/2 in L x 2 in W x 1-1/4 in H
Additional Description: BUSS-KU10-BPWCMT (N) TERMINAL BLOCK
Catalog Description: Eaton Bussmann KU series panel mount terminal block connector, Top cover and two end plates, 600V, 60A, Barrier, Standard, Ten-pole, Black, Molded nuclear grade noryl base, Nickel-plated brass philslot screw
Specifications
| UNSPSC | 39121410 |
|---|---|
| Amperage Rating | 60 A |
| Barrier Style | Dual Wall |
| Color | Black |
| Connection type | #10-32 TPI Screw |
| Connection type | Philips Slot Screw |
| Dimensions | 7-1/2 in L x 2 in W x 1-1/4 in H |
| Material | Noryl |
| Material | Noryl/Nickel Plated Brass |
| Mounting type | Surface |
| Number of Terminals | 10 |
| Screw Size | #10-32 |
| Series | KU Series |
| Temperature Rating (Degrees F) | 105 |
| Temperature Rating (Degrees F) | 105 deg C |
| Torque Rating | 20 |
| Torque Rating | 20 in-lb |
| Type | Double Row Standard |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
| Wire Size | 22 to 6 |
| Wire Size | 22 to 6 AWG |
