Description

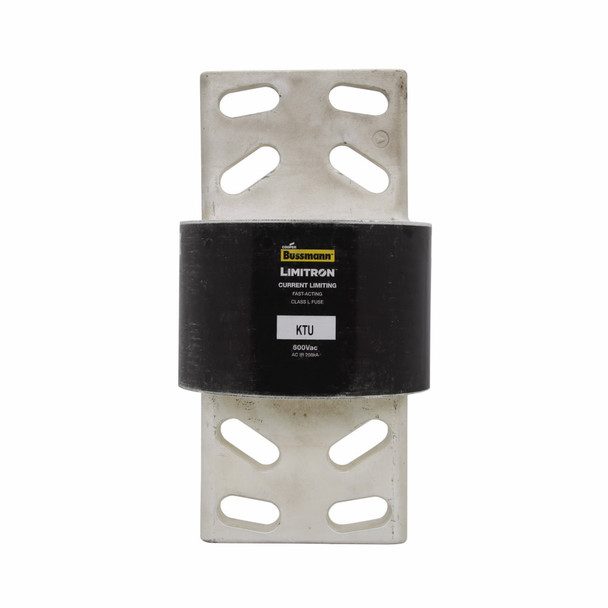

Bussmann KTU-3000 Fast Acting Fuse
Bussmann Limitron Fuse, Current Limiting Fast Acting, Series: KTU, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 3000 A, 600 V, 200 kAIC Interrupt, Class: L, Bolted Blade End Terminal, Bolted-On Mount, Cartridge Body, Single Element, Melamine Glass Tube, 5 in Dia x 10-3/4 in L Body Size
Additional Description: BUSS-KTU-3000 (N) LIMITRON FAST ACTING FUSE CLASS L NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series KTU fuse, LIMITRON Fast-acting fuse, 3000 A, Class L, Non-indicating, Bolted blade end x bolted blade end, 200 kAIC at 600 Vac, Melamine glass tube,Silver-plated end bells, Bolt, Standard, 600 V
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 3000 A |
| Body Type | Cartridge |
| Class | L |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 kAIC |
| Material | Melamine Glass Tube |
| Mounting type | Bolted-On |
| Rejection/Non-Rejection | Non-Rejection |
| Series | KTU |
| Terminal Type | Bolted Blade End |
| Type | Current Limiting Fast Acting |
| Voltage Rating | 600 V |
