Description

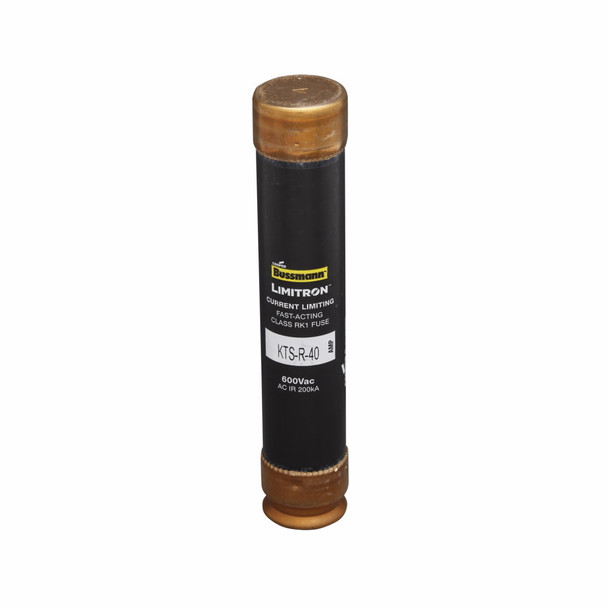

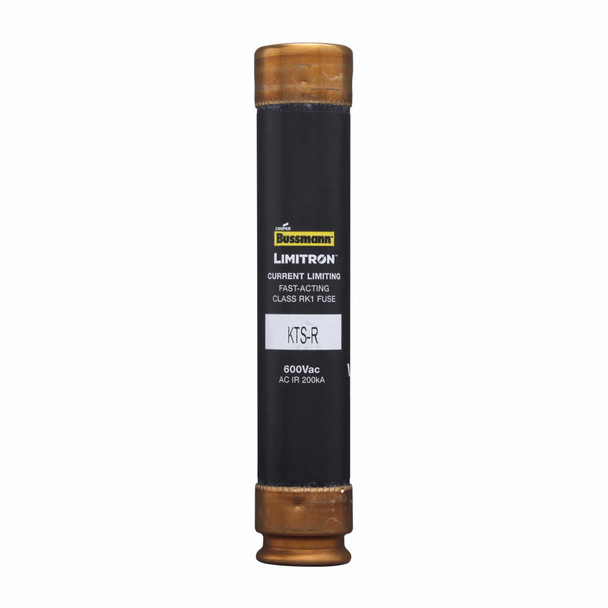

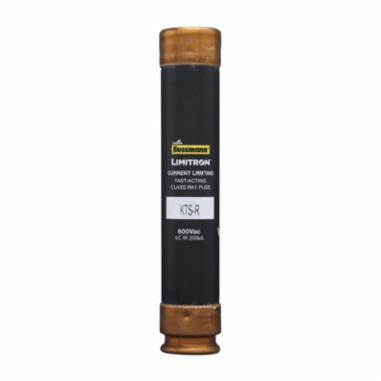

Bussmann KTS-R-40 Fast Acting Fuse
Bussmann Limitron Fuse, Current Limiting Fast Acting Low Voltage, Series: KTS-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 40 A, 600 V, 200 kAIC Interrupt, Class: RK1, Ferrule End Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine Glass Tube, 1.06 in Dia x 5.5 in L Body Size
Additional Description: BUSS-KTS-R-40 LIMITRON FAST ACTING FUSE CLASS RK1
Catalog Description: Eaton Bussmann series KTS-R fuse, LIMITRON Fast-acting fuse, 70/30 brass end cap, Panelboards, 40 A, 1, Class RK1, Non-indicating, Ferrule end x ferrule end, 200 kAIC at 600 Vac, Melamine glass tube, Standard, 600 V
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 40 |
| Amperage Rating | 40 A |
| Body Type | Cartridge |
| Class | RK1 |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 kAIC |
| Material | Melamine |
| Material | Melamine Glass Tube |
| Mounting type | Holder |
| Rejection/Non-Rejection | Rejection |
| Series | KTS-R |
| Terminal Type | Ferrule |
| Terminal Type | Ferrule End |
| Type | Current Limiting Fast Acting Low Voltage |
| Type | Current Limiting Low Voltage |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
