Description

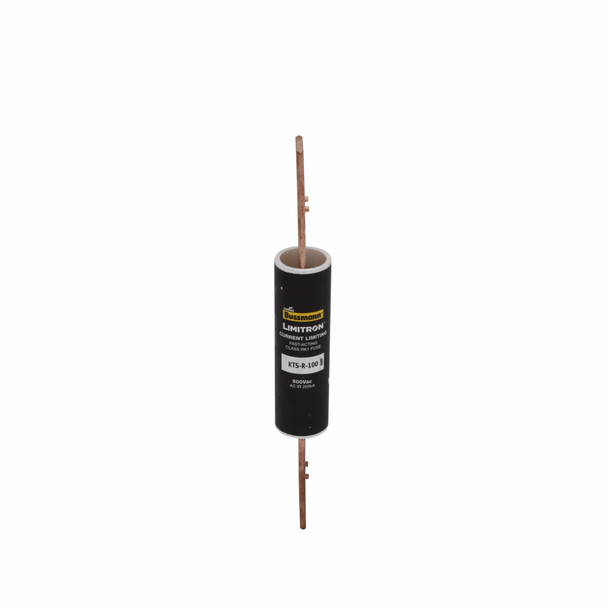

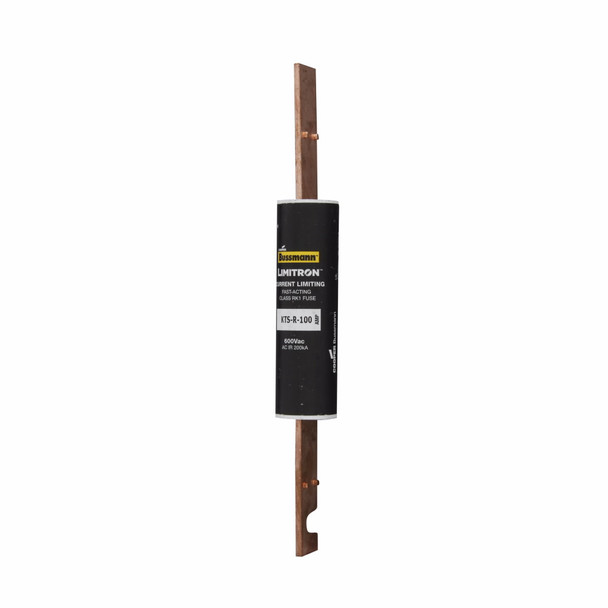

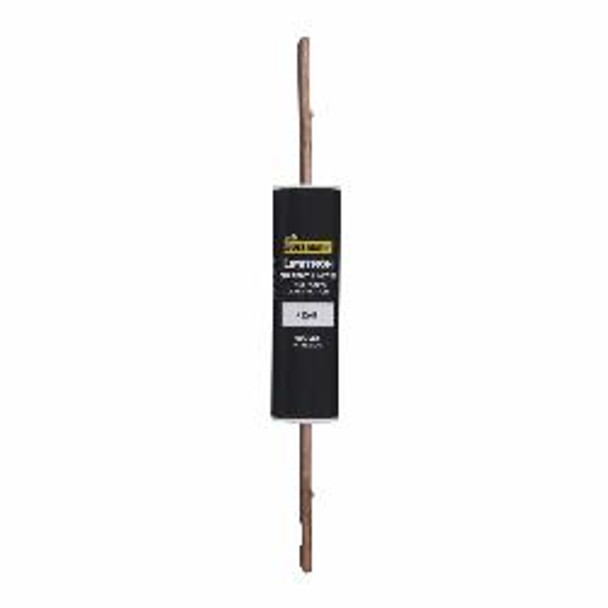

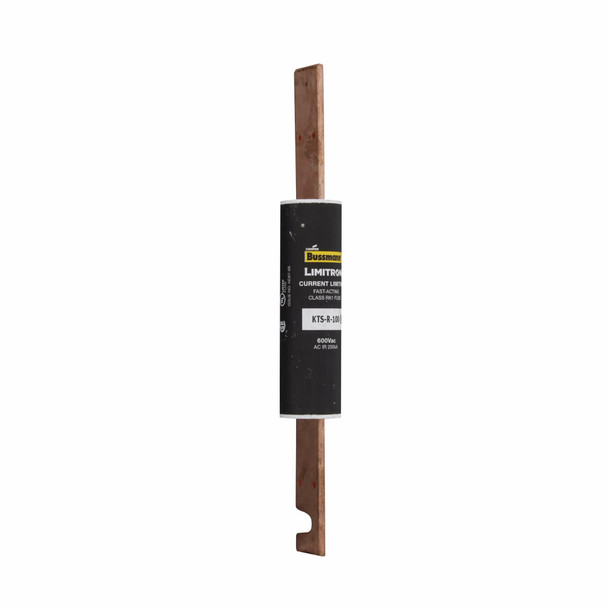

Bussmann KTS-R-100 Fast Acting Fuse
Bussmann Limitron Fuse, Current Limiting Fast Acting Low Voltage, Series: KTS-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 100 A, 600 V, 200 kAIC Interrupt, Class: RK1, Blade End Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine Glass Tube, 1 in Dia x 7.88 in L Body Size
Additional Description: BUSS-KTS-R-100 LIMITRON FAST ACTING FUSE CLASS RK1
Catalog Description: Eaton Bussmann series KTS-R fuse, 70/30 brass end cap, Panelboards, 100 A, 1, Class RK1, Non-indicating, Blade end x blade end, 200 kAIC at 600 Vac, Melamine glass tube, Standard, 600 V
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 100 A |
| Body Type | Cartridge |
| Class | RK1 |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 kAIC |
| Material | Melamine Glass Tube |
| Mounting type | Holder |
| Rejection/Non-Rejection | Rejection |
| Series | KTS-R |
| Terminal Type | Blade End |
| Type | Current Limiting Fast Acting Low Voltage |
| Voltage Rating | 600 V |
