Description

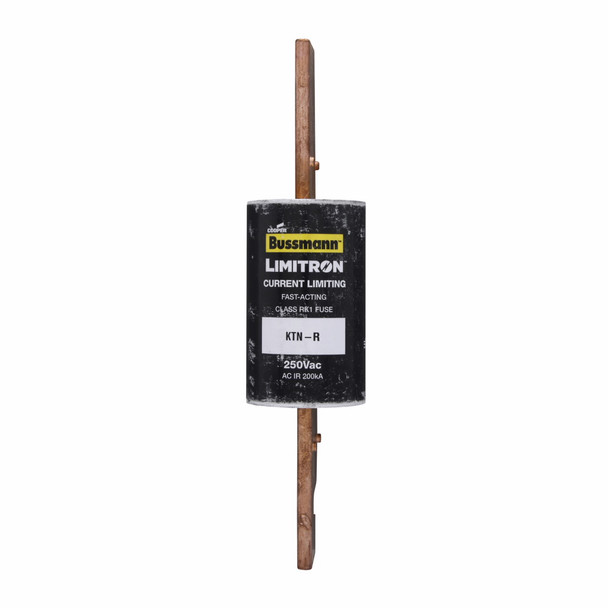

Bussmann KTN-R-600
Bussmann Limitron Fuse, Current Limiting Fast Acting Low Voltage, Series: KTN-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 600 A, 250 VAC/VDC, 200/100 kAIC Interrupt, Class: RK1, Blade End Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine Glass Tube, 2.59 in Dia x 10.38 in L Body Size
Additional Description: BUSS-KTN-R-600 LIMITRON FAST ACTING FUSE
Catalog Description: Eaton Bussmann series KTN-R fuse, LIMITRON Fast-acting fuse, 70/30 brass end cap, Panelboards, 600 A, 1, Class RK1, Non-indicating, Blade end x blade end, 100 kAIC at 250 Vdc,200 kAIC at 250 V, Melamine glass tube, Standard, 250 V, 250 Vdc
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 600 A |
| Body Type | Cartridge |
| Class | RK1 |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200/100 kAIC |
| Material | Melamine Glass Tube |
| Mounting type | Holder |
| Rejection/Non-Rejection | Rejection |
| Series | KTN-R |
| Terminal Type | Blade End |
| Type | Current Limiting Fast Acting Low Voltage |
| Voltage Rating | 250 VAC/VDC |
