Description

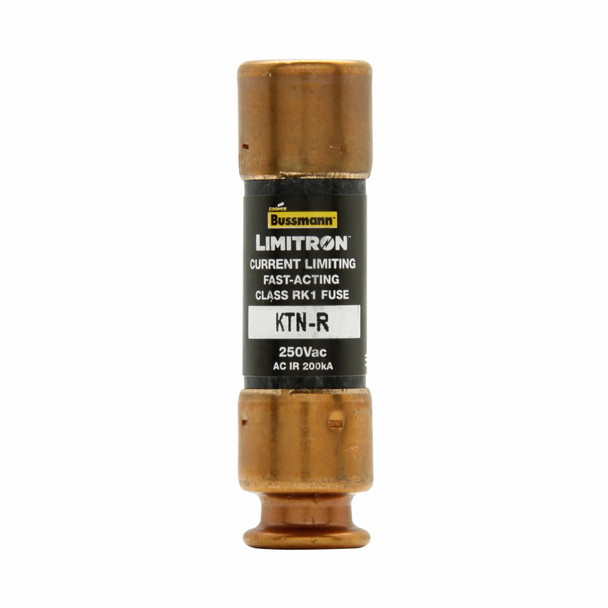

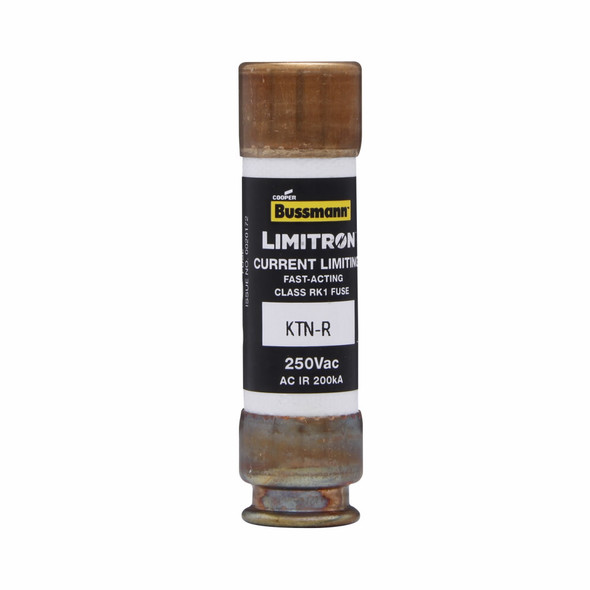

Bussmann KTN-R-3 Fast Acting Fuse
Bussmann Limitron Fuse, Current Limiting Fast Acting Low Voltage, Series: KTN-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 3 A, 250 V, 200/10 kAIC Interrupt, Class: RK1, Ferrule End Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine Glass Tube, 0.56 in Dia x 2 in L Body Size
Additional Description: BUSS-KTN-R-3 LIMITRON FAST ACTING FUSE
Catalog Description: Eaton Bussmann series KTN-R fuse, 70/30 brass end cap, Panelboards, 3 A, 1, Class RK1, Non-indicating, Ferrule end x ferrule end, Melamine glass tube, Standard, 250 V
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 3 |
| Amperage Rating | 3 A |
| Body Type | Cartridge |
| Class | RK1 |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 100/200 |
| Interrupt Rating | 200/10 kAIC |
| Material | Melamine |
| Material | Melamine Glass Tube |
| Mounting type | Holder |
| Rejection/Non-Rejection | Rejection |
| Series | KTN-R |
| Terminal Type | Ferrule |
| Terminal Type | Ferrule End |
| Type | Current Limiting Fast Acting Low Voltage |
| Type | Current Limiting Low Voltage |
| Voltage Rating | 250 |
| Voltage Rating | 250 V |
