Description

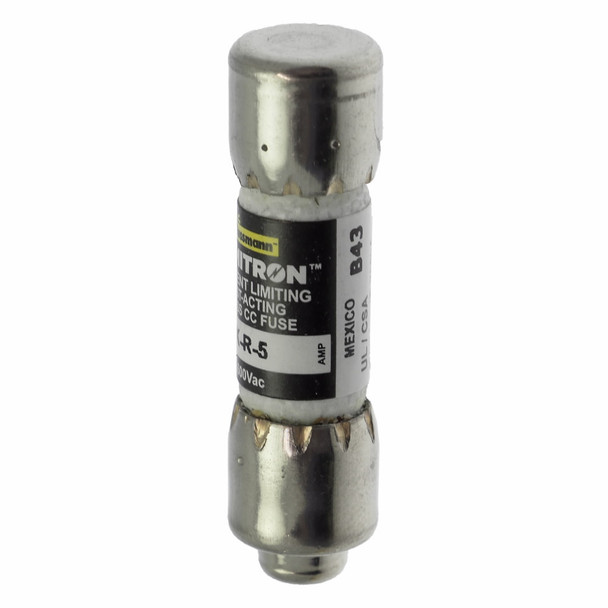

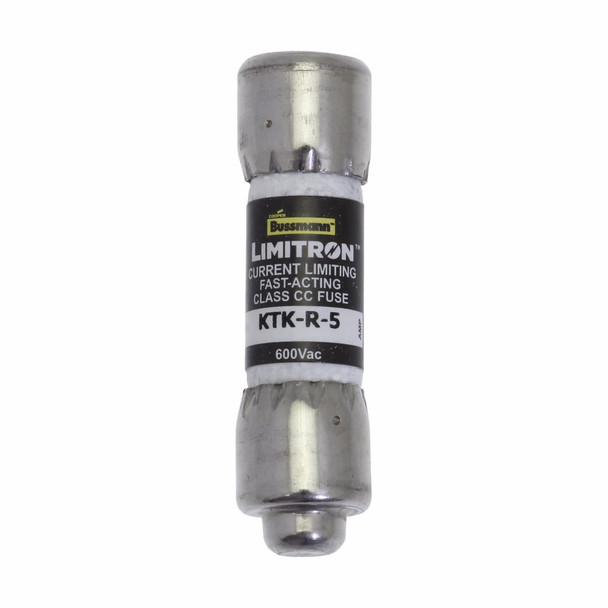

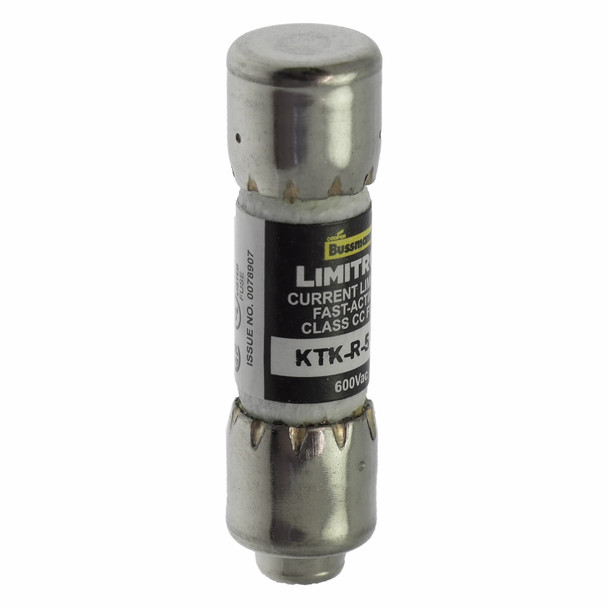

Bussmann KTK-R-5 Fast Acting Fuse
Bussmann Limitron Fuse, Fast Acting, Series: KTK-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 5 A, 600 V, 200 kA Interrupt, Class: CC, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Single Element, Melamine, 13/32 in Dia x 1-1/2 in L Body Size
Additional Description: BUSS-KTK-R-5 CLASS CC FAST ACTING FUSE CLASS CC
Catalog Description: Eaton Bussmann series KTK-R fuse, Rejection style, Specialized circuits and industrial control, 5 A, Class CC, Non-indicating, Ferrule end x ferrule end, 200 kAIC, Melamine tube, Standard, 600 V
Specifications
| UNSPSC | 39121606 |
|---|---|
| Amperage Rating | 5 |
| Amperage Rating | 5 A |
| Body Type | Cylindrical |
| Class | CC |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 kA |
| Material | Melamine |
| Mounting type | Holder |
| Rejection/Non-Rejection | Rejection |
| Series | KTK-R |
| Terminal Type | Ferrule |
| Type | Fast Acting |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
