Description

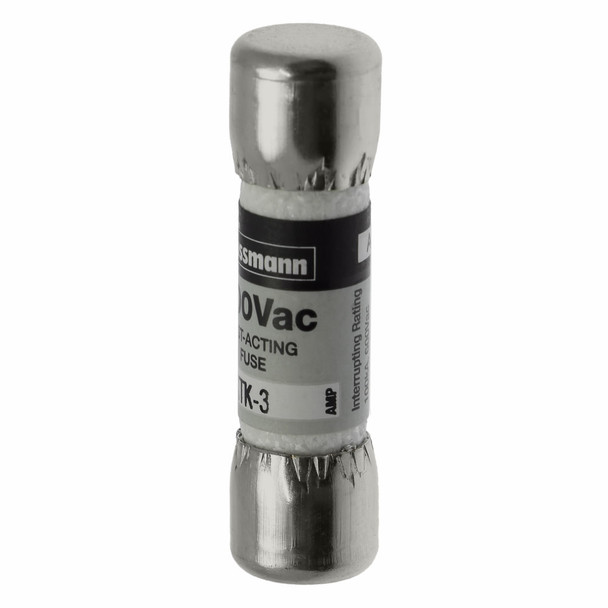

Bussmann KTK-3 Fast Acting Fuse
Bussmann Limitron Fuse, Fast Acting Low Voltage Supplemental, Series: KTK, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 3 A, 600 VAC, 100 kAIC Interrupt, Class: Supplemental, Ferrule End Terminal, Holder Mount, Cartridge Body Type, Single Element, Nickel Plated Bronze, Black, 13/32 in Dia x 1-1/2 in L Body Size
Additional Description: BUSS-KTK-3 LIMITRON FAST ACTING FUSE FUS
Catalog Description: Eaton Bussmann series KTK fuse, LIMITRON Fast-acting fuse, Control circuits, lighting circuit protection, meter circuits, 3 A, Non-indicating, Ferrule end x ferrule end, 100 kAIC at 600 V, Nickel-plated bronze endcap,Melamine tube, 600 V
Specifications
| UNSPSC | 39121609 |
|---|---|
| Amperage Rating | 3 |
| Amperage Rating | 3 A |
| Body Type | Cartridge |
| Class | CC |
| Class | Supplemental |
| Color | Black |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 100 |
| Interrupt Rating | 100 kAIC |
| Material | Melamine |
| Material | Nickel Plated Bronze |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | KTK |
| Terminal Type | Ferrule |
| Terminal Type | Ferrule End |
| Type | Fast Acting Low Voltage Supplemental |
| Type | Low Voltage Supplemental |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC |
