Description

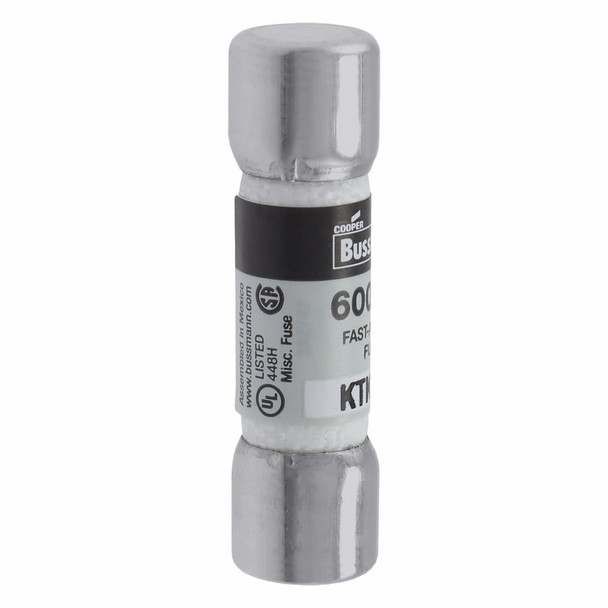

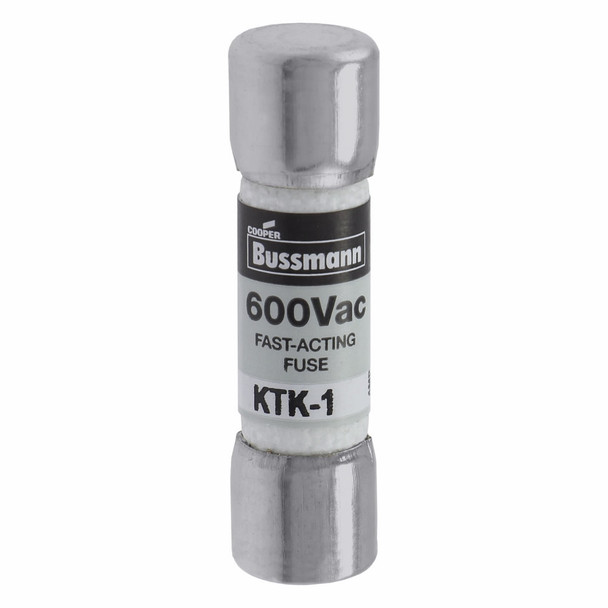

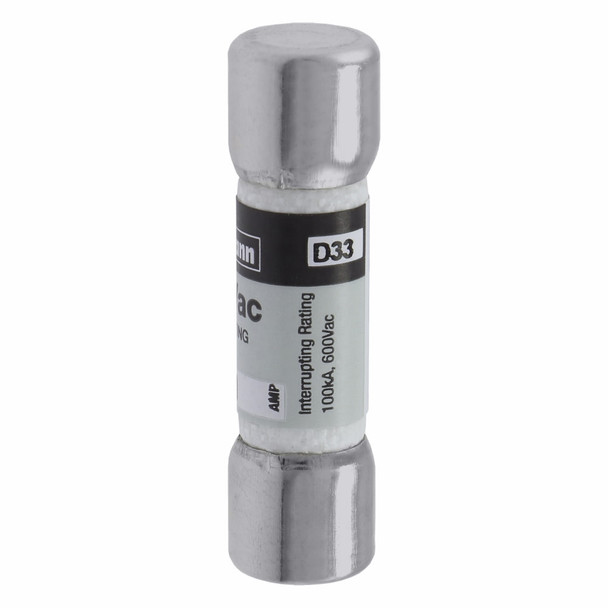

Bussmann KTK-1 Fast Acting Fuse
Bussmann LIMITRON Fast Acting Fuse, Series: KTK, Non-Indicating, Non-Rejection, 1 A, 600 VAC, 100 kA Interrupt, Class: Supplemental/Midget, Ferrule Terminal, Holder Mounting, Cartridge Body, Single Element, Melamine, Black, 13/32 in Dia x 1-1/2 in L Body
Additional Description: BUSS-KTK-1 LIMITRON FAST ACTING FUSE FUS
Catalog Description: Eaton Bussmann series KTK fuse, LIMITRON Fast-acting fuse, Control circuits, lighting circuit protection, meter circuits, 1 A, Non-indicating, Ferrule end x ferrule end, 100 kAIC at 600 V, Nickel-plated bronze endcap,Melamine tube, 600 V
Specifications
| UNSPSC | 39121609 |
|---|---|
| Amperage Rating | 1 |
| Amperage Rating | 1 A |
| Body Type | Cartridge |
| Class | Supplemental/Midget |
| Color | Black |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 100 |
| Interrupt Rating | 100 kA |
| Material | Melamine |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | KTK |
| Terminal Type | Ferrule |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC |
