Description

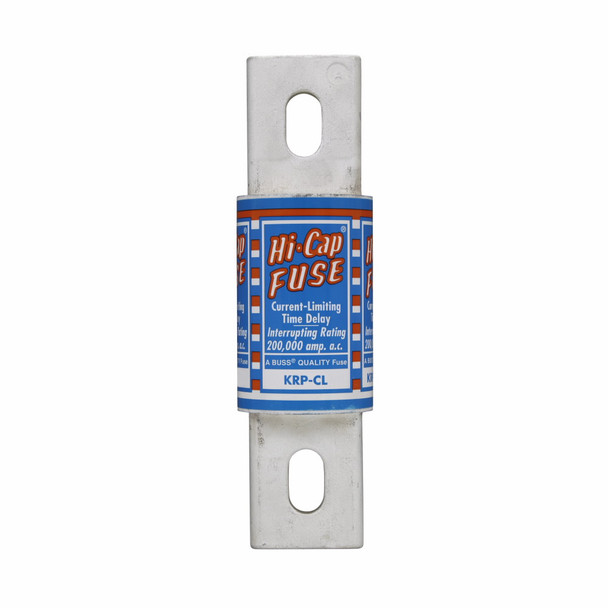

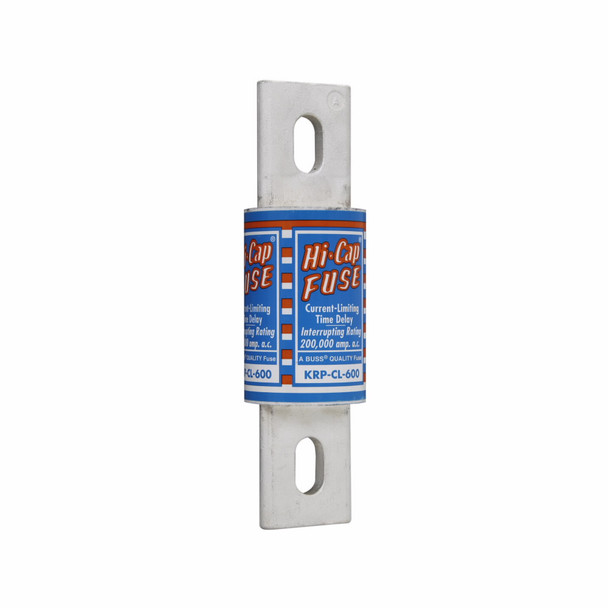

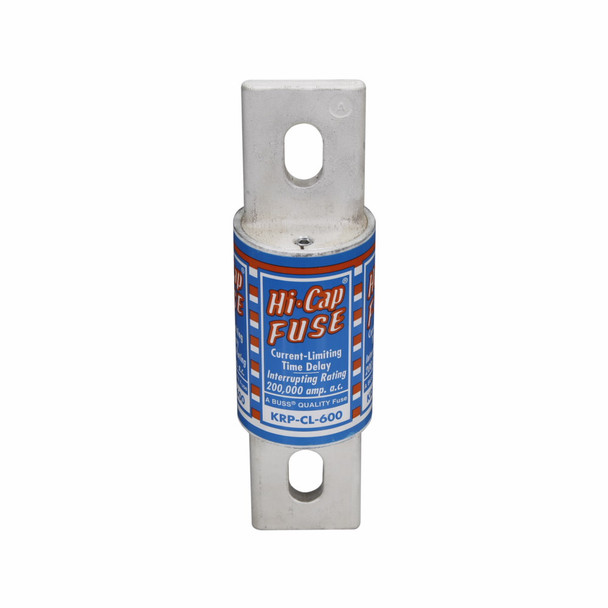

Bussmann KRP-CL-600 Time Delay Fuse
Bussmann HI-CAP Fuse, Current Limiting High Capacity Time Delay, Series: KRP-CL, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 600 A, 600 V, 200 kAIC Interrupt, Class: L, Blade End Terminal, Bolted-On Mount, Cartridge Body, Dual Element, Fiberglass/Melamine, 2.5 in Dia x 8.63 in L Body Size
Additional Description: BUSS-KRP-CL-600 HI-CAP TIME DELAY FUSE CLASS L
Catalog Description: Eaton Bussmann series KRP-CL fuse, Time-delay current-limiting fuse, Large distribution switchboards, large machinery disconnects, power panelboards, 600 A, Class L, Non-indicating, Blade end x blade end, 200 kAIC at 600 V, Standard, 600 V
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 600 |
| Amperage Rating | 600 A |
| Body Type | Cartridge |
| Class | L |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 kAIC |
| Material | Fiberglass/Melamine |
| Mounting type | Bolted-On |
| Mounting type | Bolt-On |
| Rejection/Non-Rejection | Non-Rejection |
| Series | KRP-CL |
| Terminal Type | Blade End |
| Terminal Type | Knife Blade |
| Type | Current Limiting |
| Type | Current Limiting High Capacity Time Delay |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
